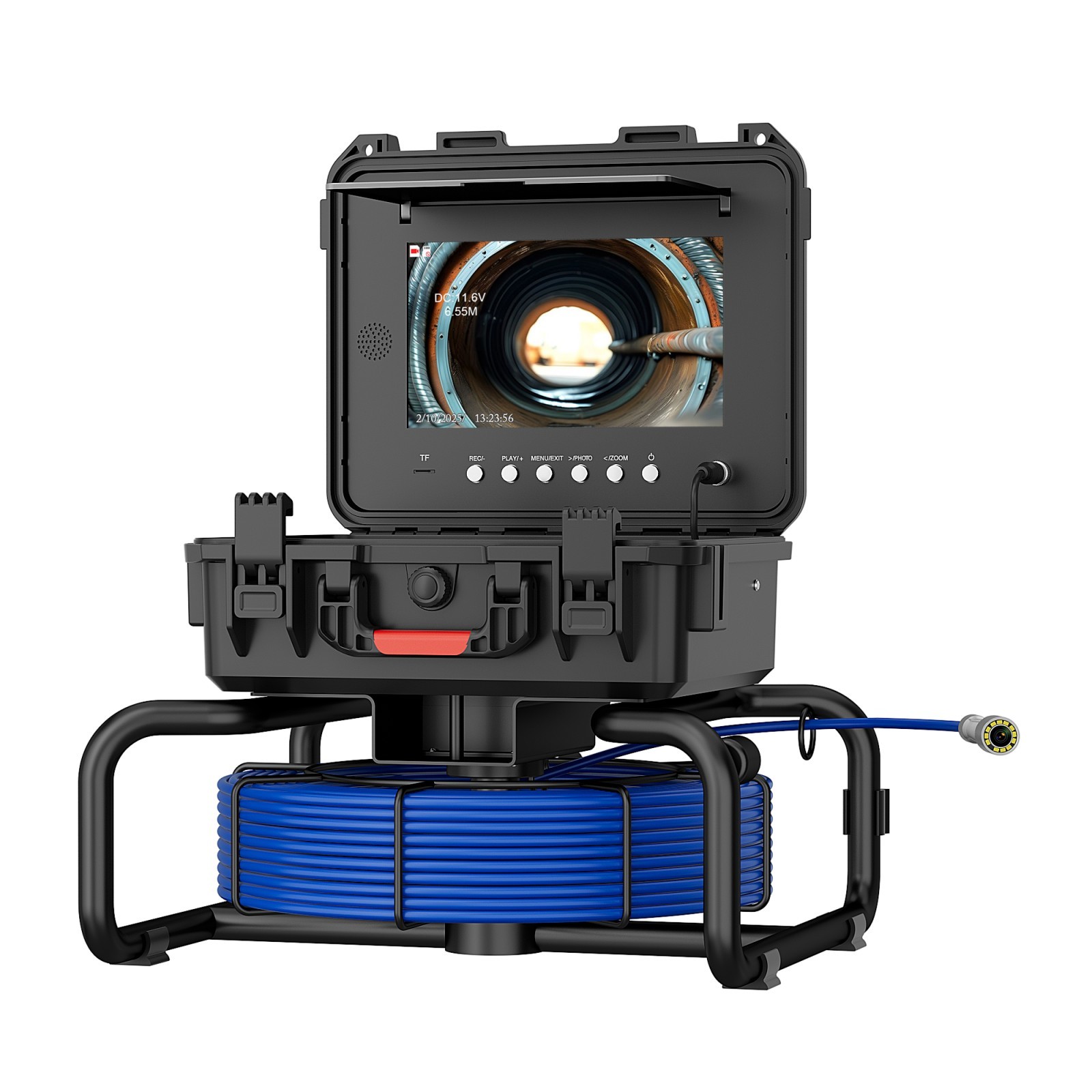

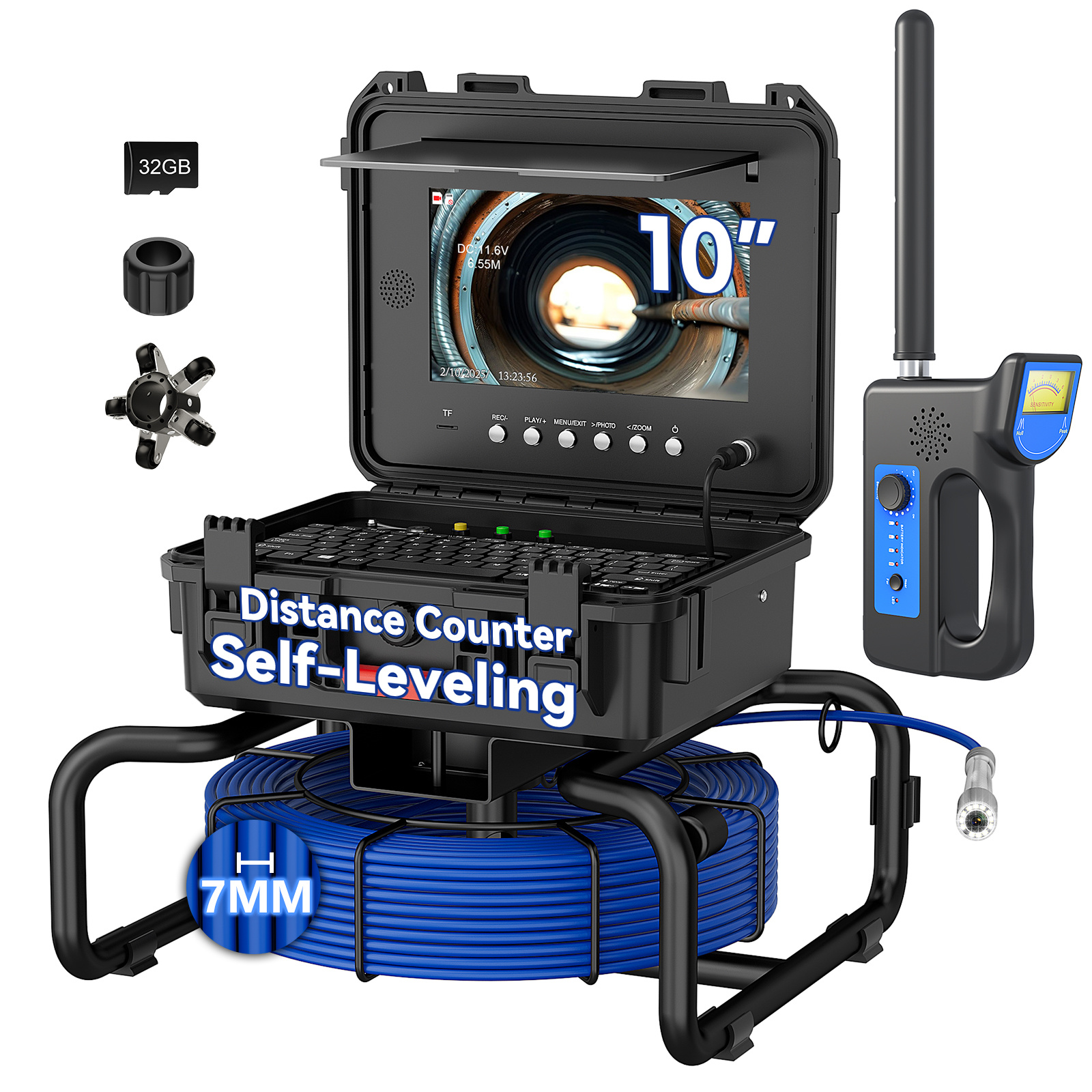

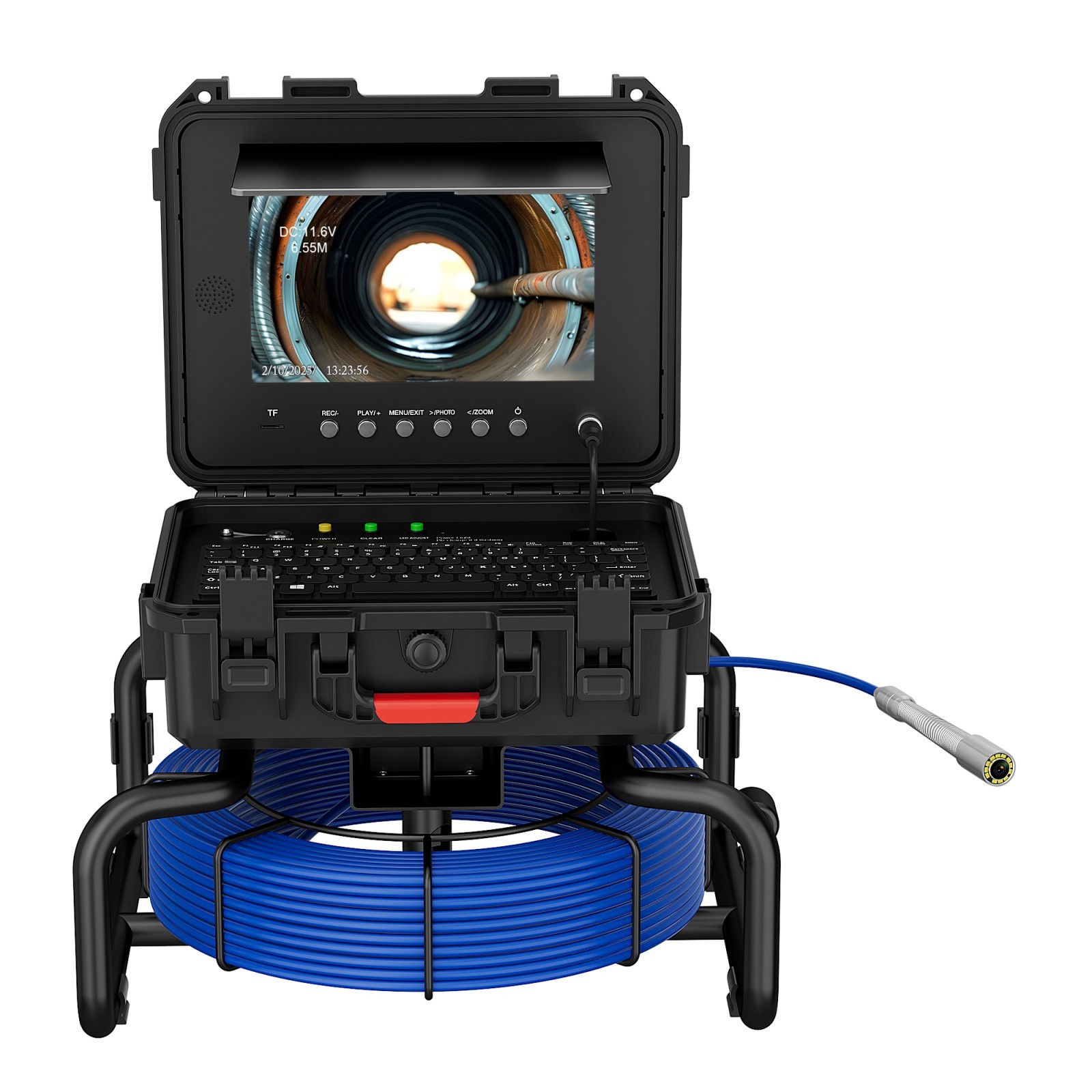

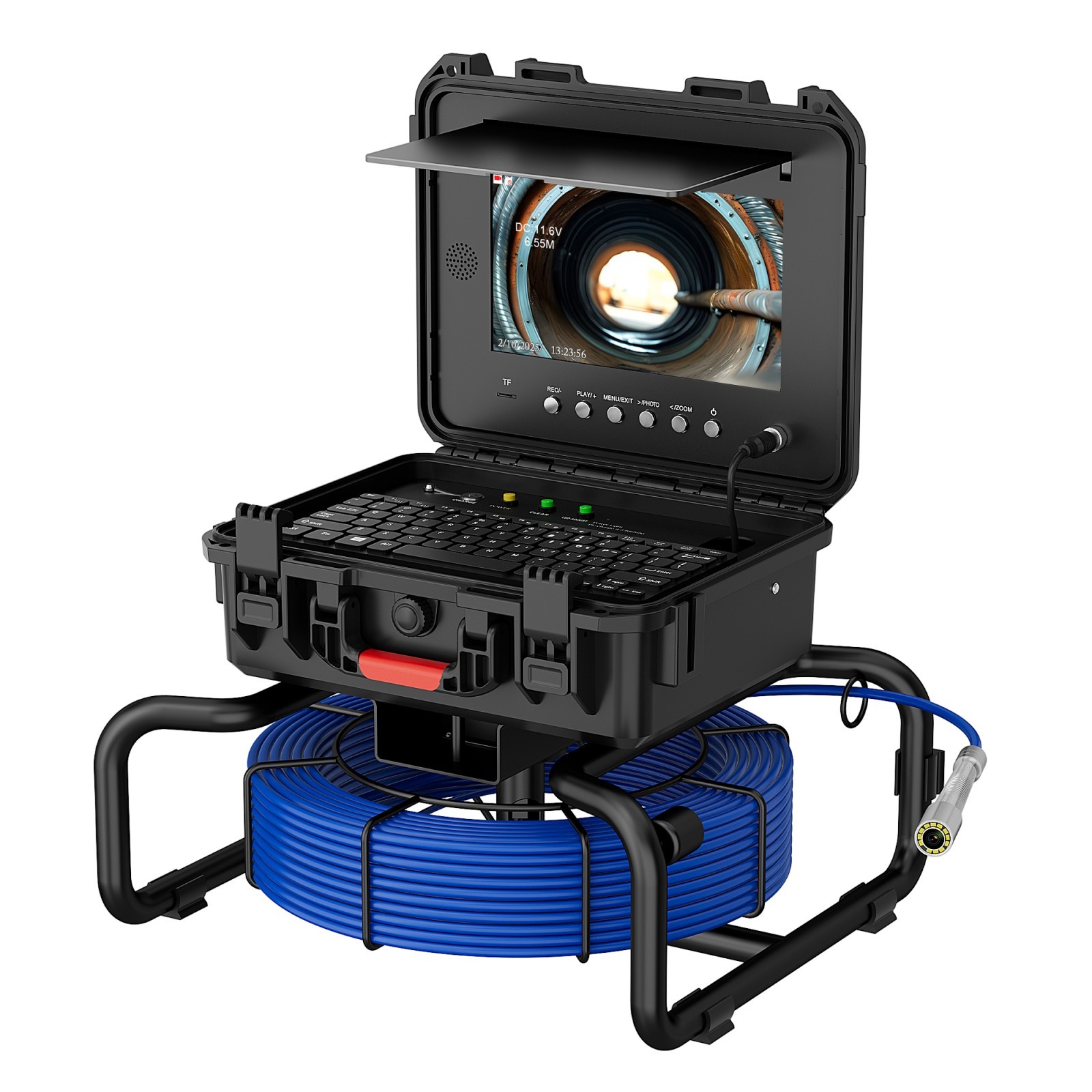

10 inch IPS Sewer Pipe Inspection Camera with Locator Meter Counter 7mm Cable Auto Self-Leveling 512hz AHD 1080P Video Borescope
Video + Audio + 5X Image Enlarge:
Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is available to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. （DVR Edition Video Format :AVI Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times

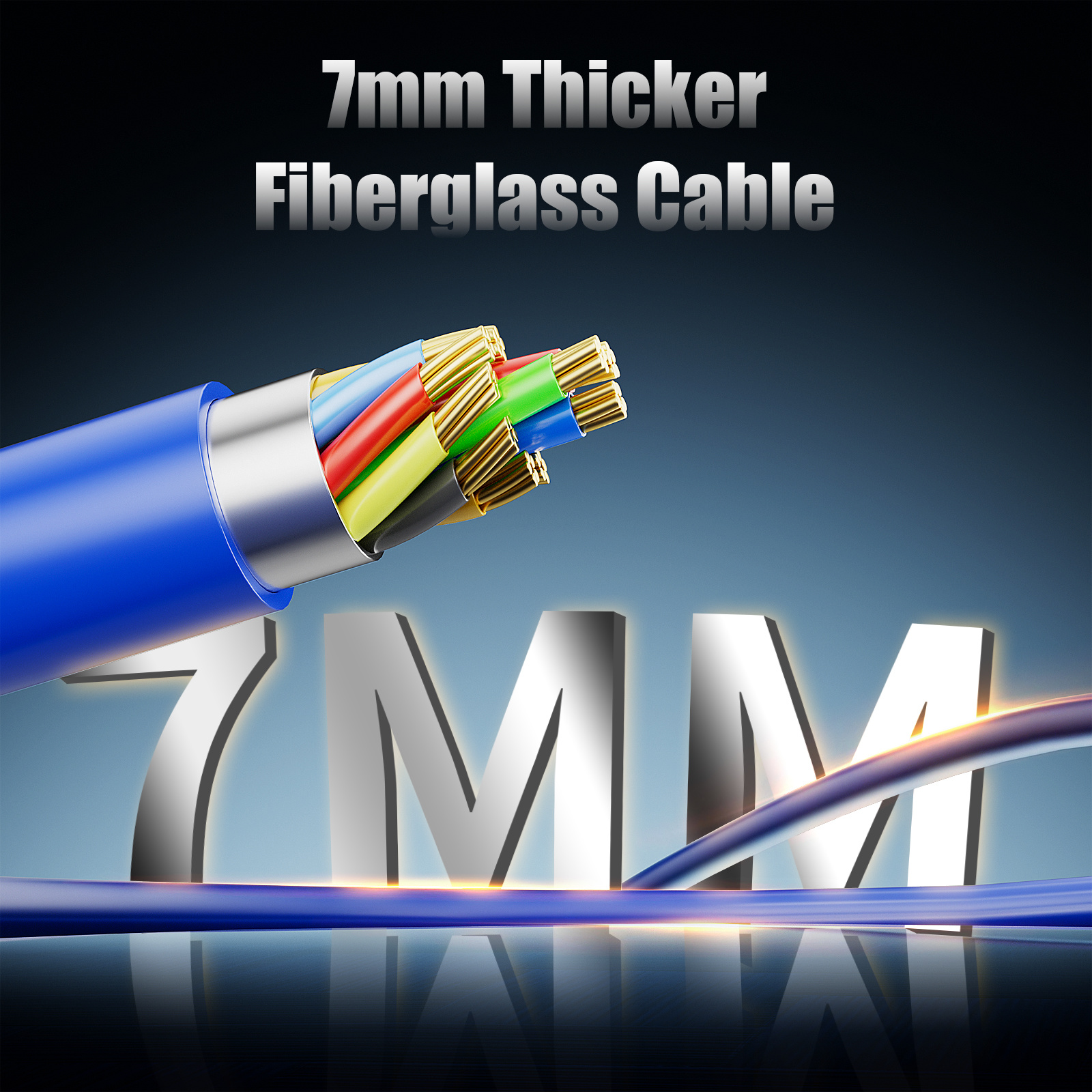

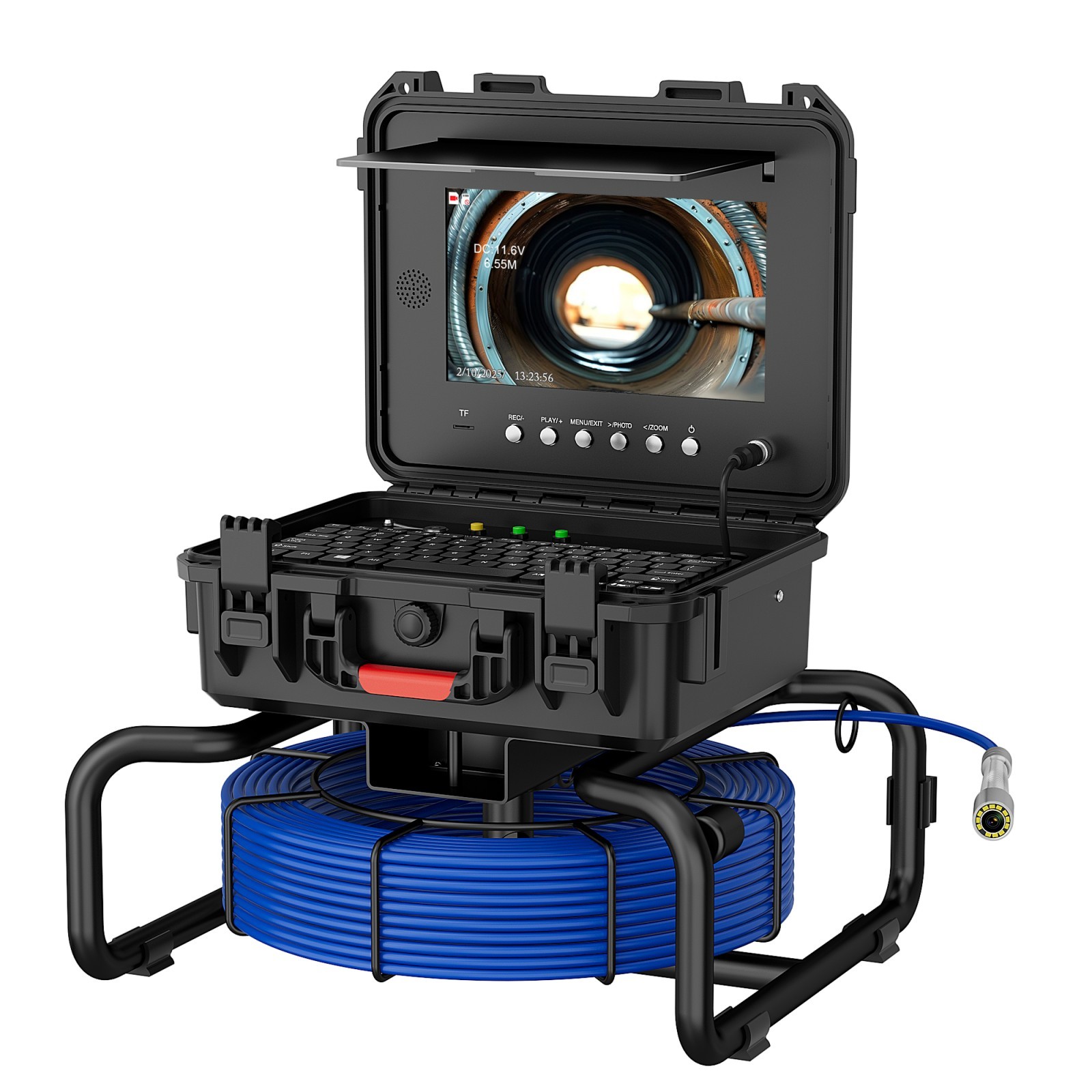

MONITOR&CABLE：
Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 10 inches color IPS LCD monitor for outdoor inspections. The material of wire is fiberglass rod(diameter: 7MM),anti-corrosion/cold/tensile.
DVR Recording Function：
Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is available to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. （DVR Edition Video Format :AVI Photo format :JPG)

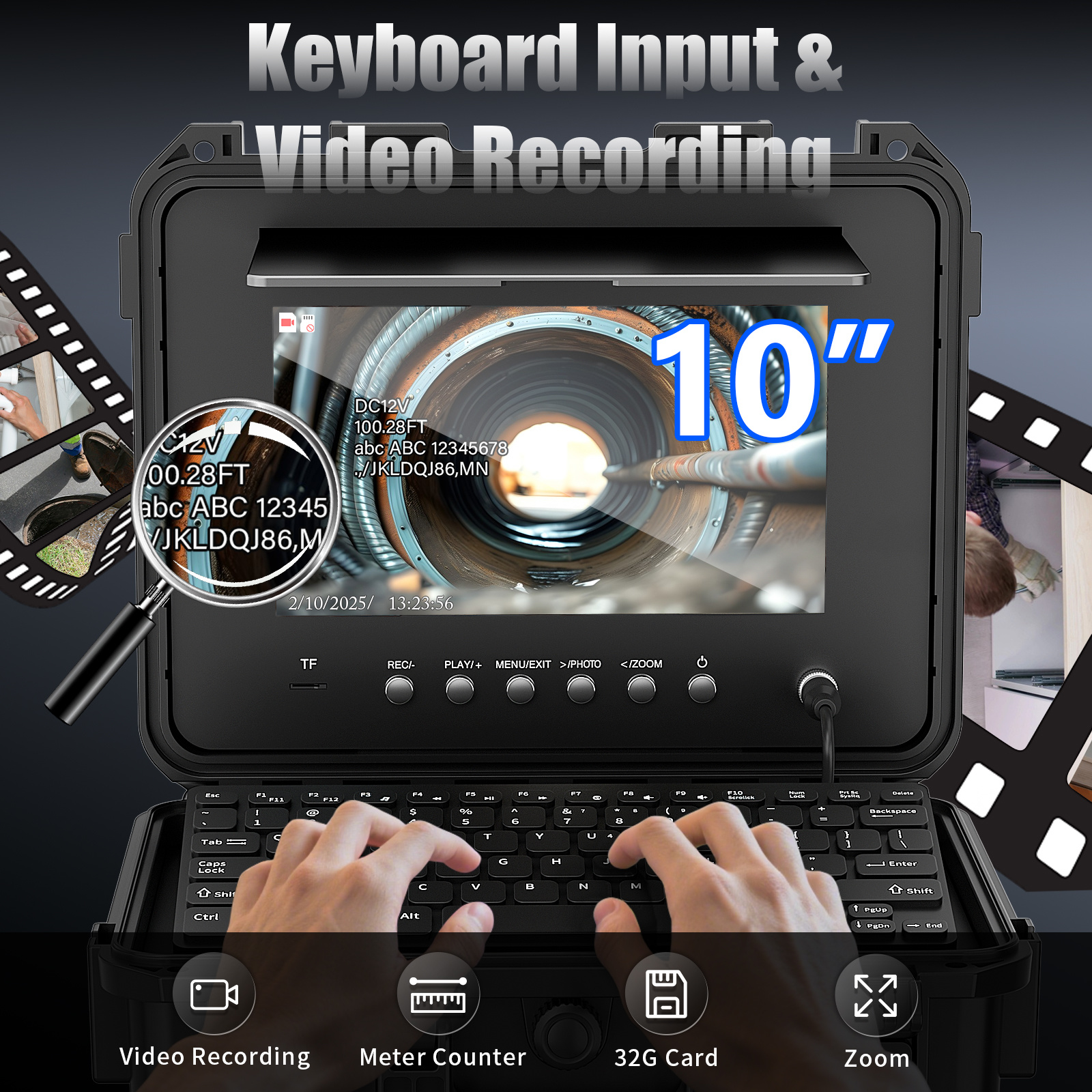

Meter Counter & Keyboard function:
Can change the metric and imperial,support input the text information /symbols to mark events during the work

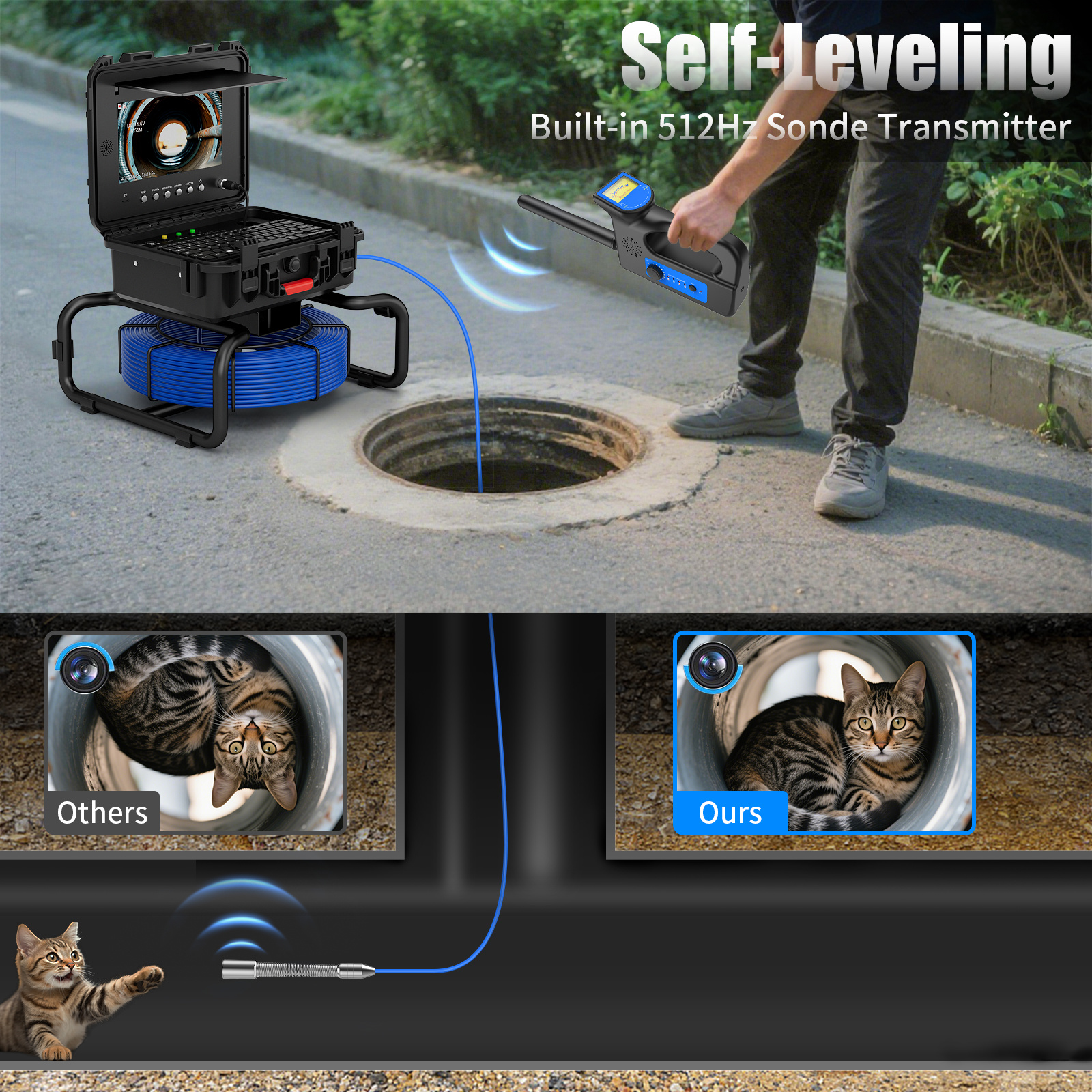

512HZ TRANSMITTER:
This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’s position underground.

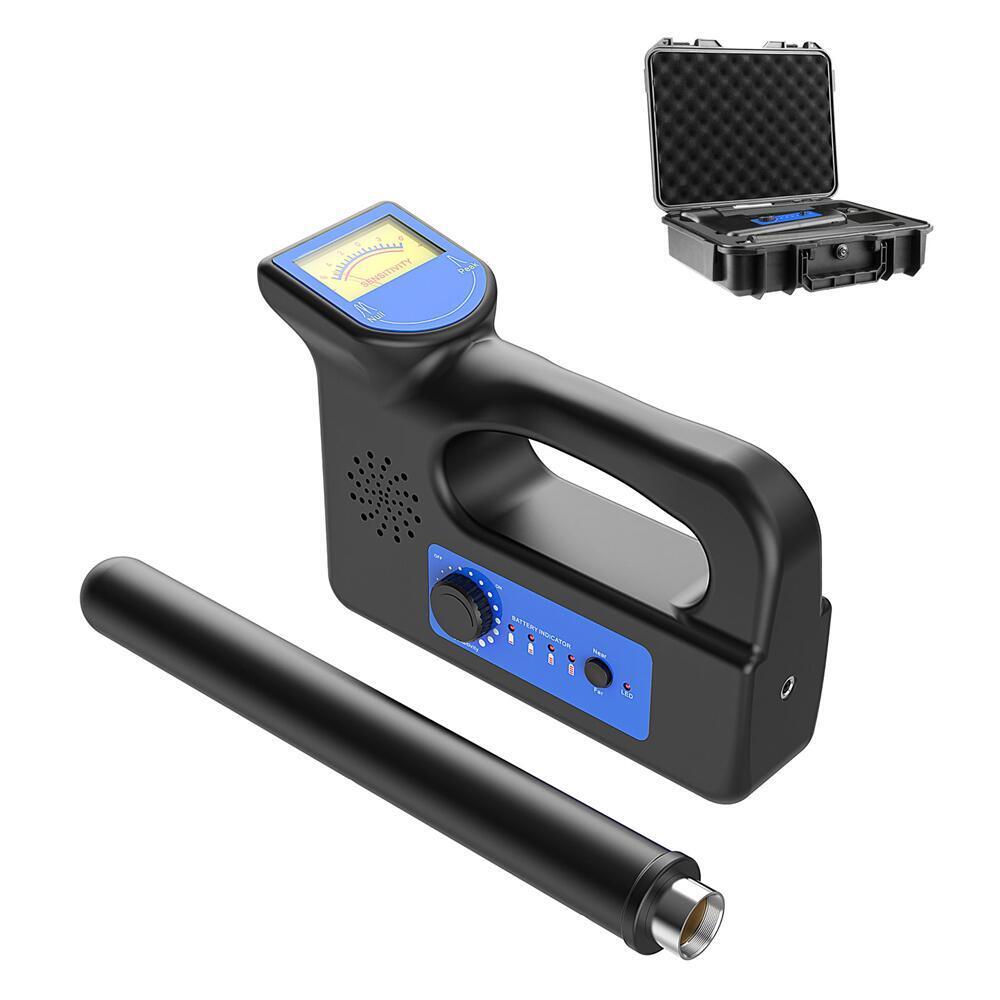

512HZ Receiver Technical Parameters：
Receiver Frequency: 512HZ
Distance: about 5m
Battery: 3.7V 3000MAH built-in lithium battery
Charger: 5V1A
Battery Indicator：4 gear,it is flashing when battery is low
Battery working time：about 10 hours
Signal strength：6 gear
Speaker：Support
Detect Mode : Far/ Near
Applications:
Blocked / slow draining plumbing.
Wall / wire inspection.
Home owners inspection.
Support for Part Replacement & Fast Customer Service:
If you need assistance,including pre/after-sales service, please do not hesitate to contact us. All MAOTEWANG pipeline inspection camera spare parts/accessories for repair or replacement,factory offer very cheap price,you do not need to worry about the cost and availability of the replacements.
The MAOTEWANG Video Snake Pipe and Wall Inspection is a necessity for any homeowner, contractor and even professional!
Item: parameter
1.Monitor:10 inch IPS color record monitor
2. Function:Video record/audio/photo/electronic zoom/power display/ meter counter/keyboard input (support English)
3. TF Card: Memory Support maximum 128G TF card(16G TF card included)
4.512hz:Built in 512hz transmitter
5. Receiver Frequency: 512Hz

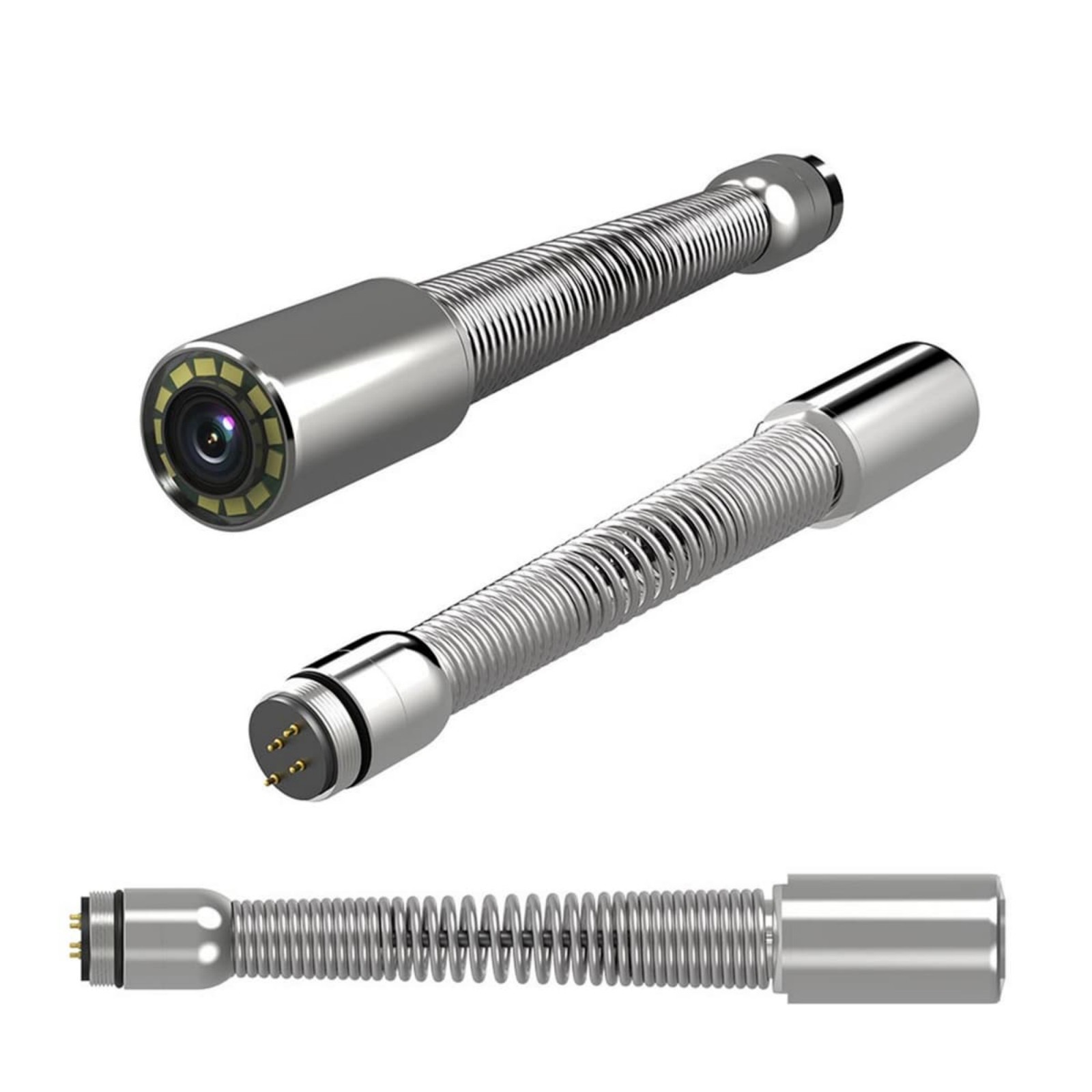

6. Camera :Auto Self Leveling AHD 1080P
7. Camera : AHD 1080P
8. Quick photo: press the <key to take a photo.
9. Image Zoom : Press > key to zoom the image from 0 to 5 times.
10. Charger: AC100-240V DC12.6V
11. Battery: Luminal-cell arrester 4.5AH
12. continuous use time for battery: approximate 8h
13. investigation depth: 50M( optional line length)
14. material: fiber tube with /high intensity

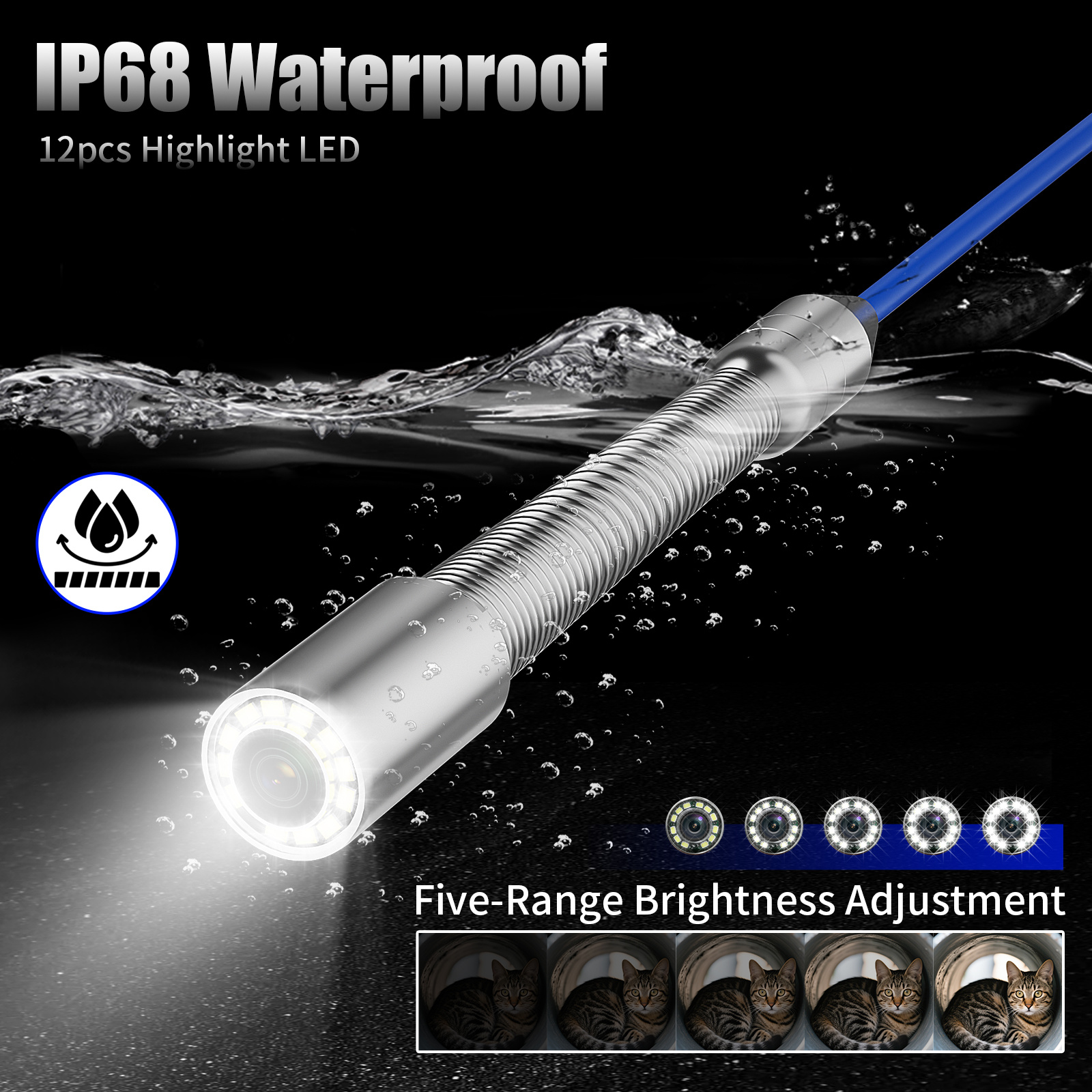

15. camera light source: 12 PCS LED with high White light(adjustable)
16. camera viewing angle: 145°
17. Lens Mirror Material : Sapphire
18. camera size/material: 23MM* 40MM /stainless steel
19. camera protective cover parts size/material:38MM* 28MM /plastic-steel
20. camera protective cover parts size/material:90MM* 28MM /plastic-steel with wheel
21. camera picture: color

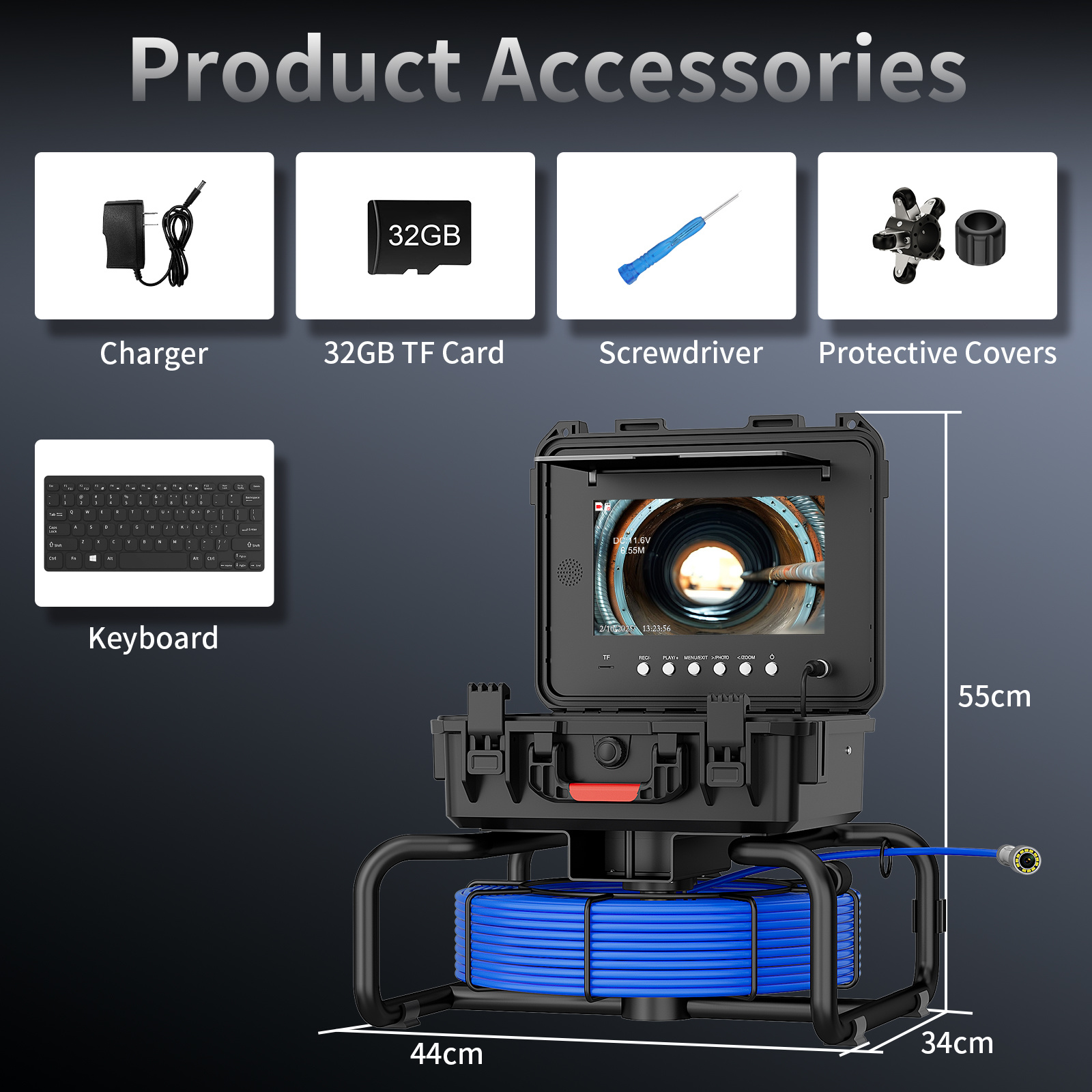

Package List:
1 *10.1inch IPS Monitor（DVR)
1 * Keyboard
1 * Camera (Built in 512hz transmitter )
1 * 512Hz PIPE Locator
1 * 32GB TF Card
1 * 50M (7MM Fiberglass Cable)
2 * Camera Proof Cover
1 * 4500mah Battery Box
1 * Charger
1 * Connection Cable
1 * Screw Driver
1 * User Manual (English)
