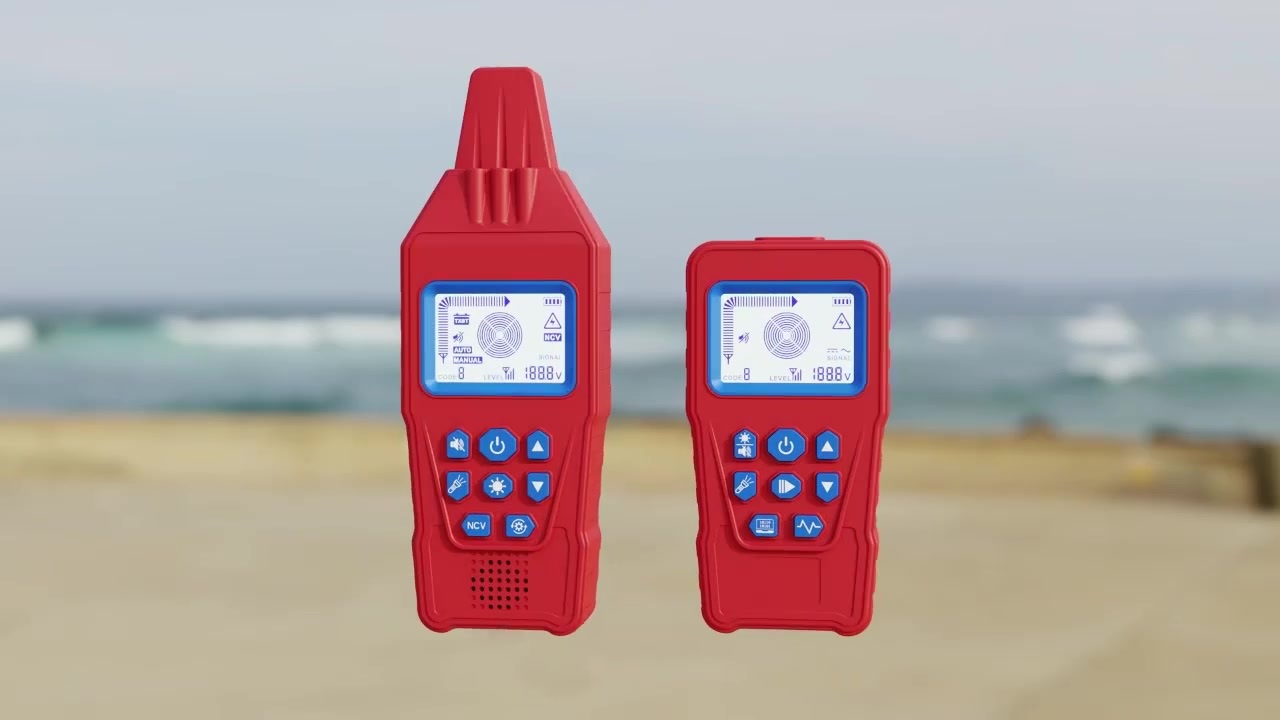

Product Video
Product introduction

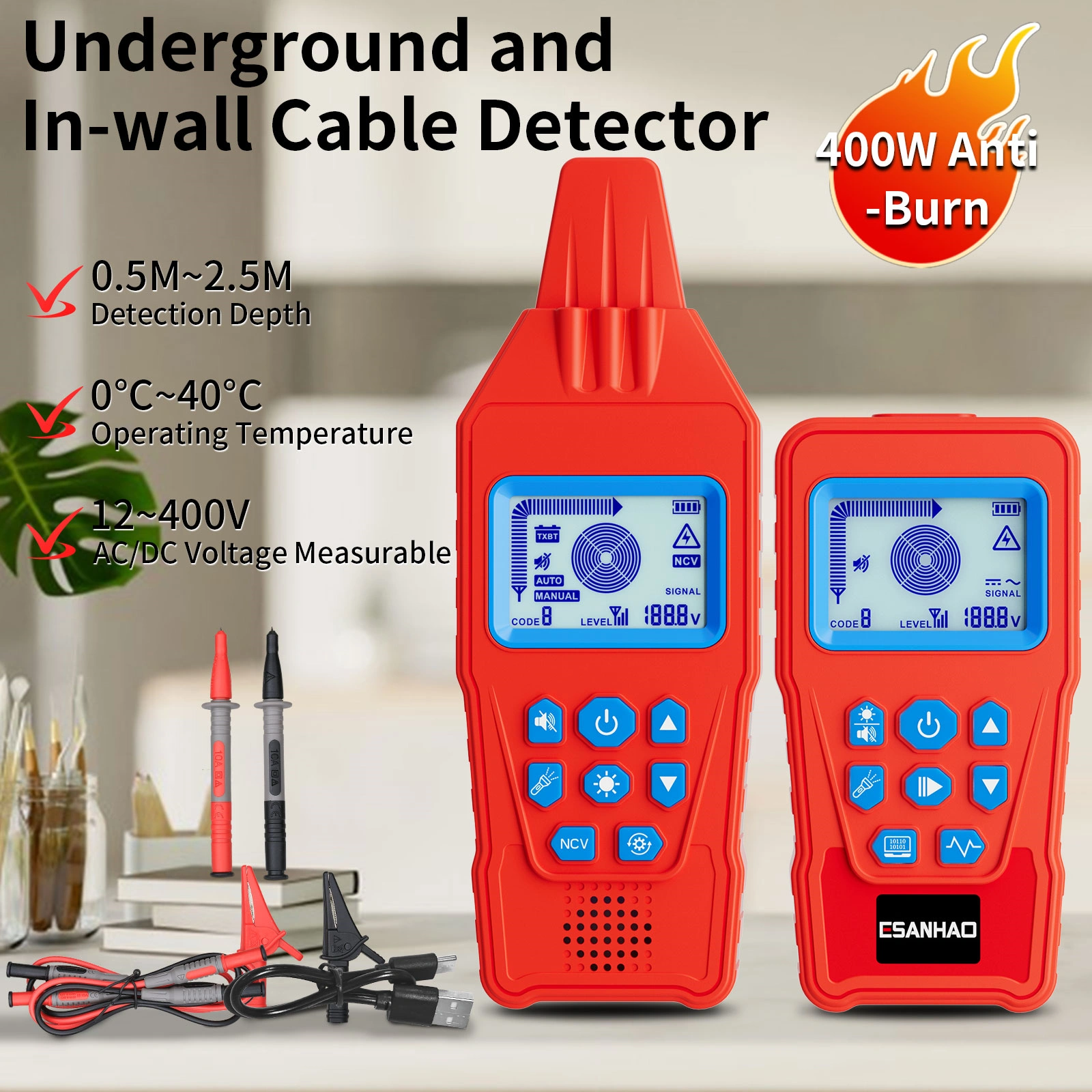

Underground Cable Tester Anti Interference Cable Tracker High&Low Voltage Cable Locator Underground Pipe Detector

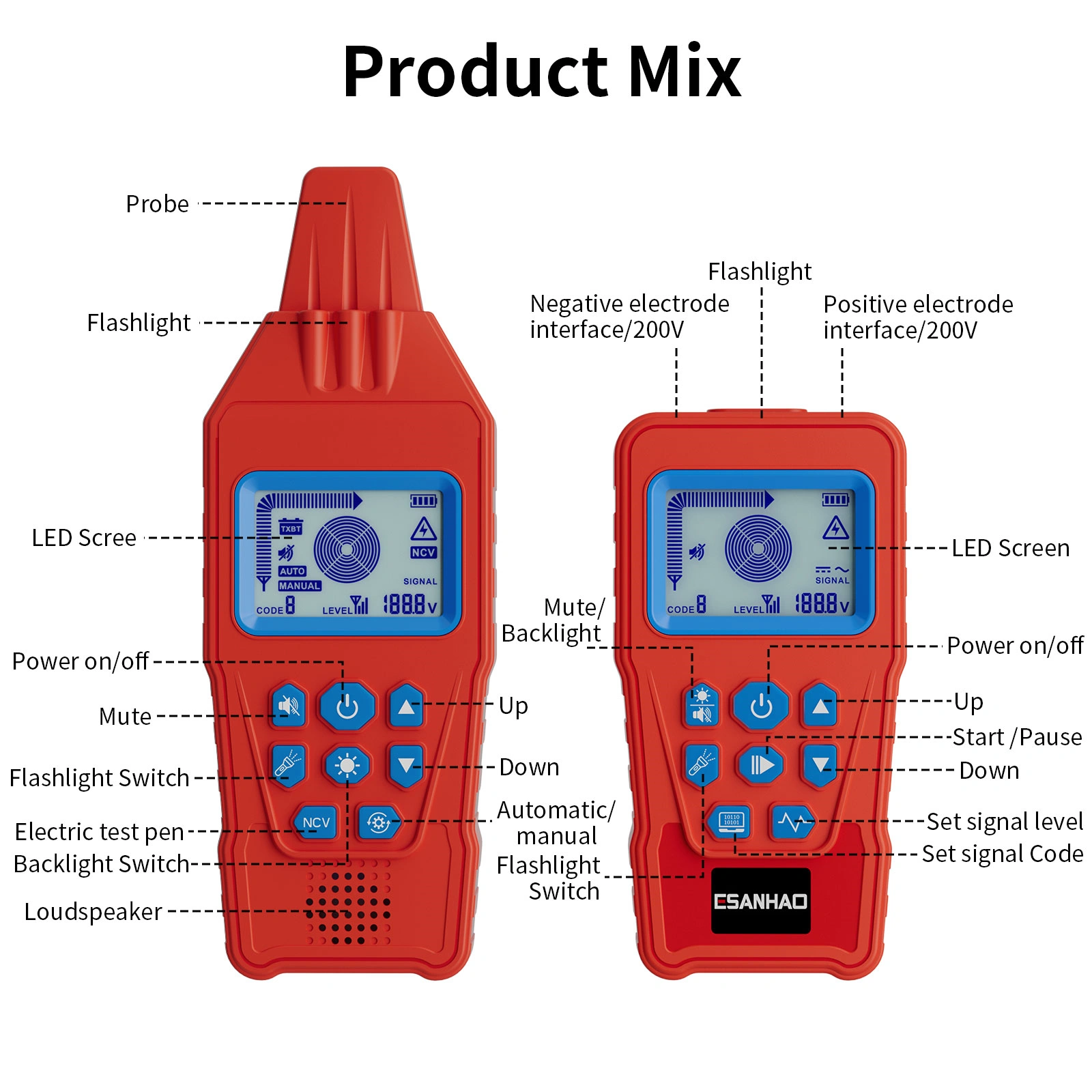

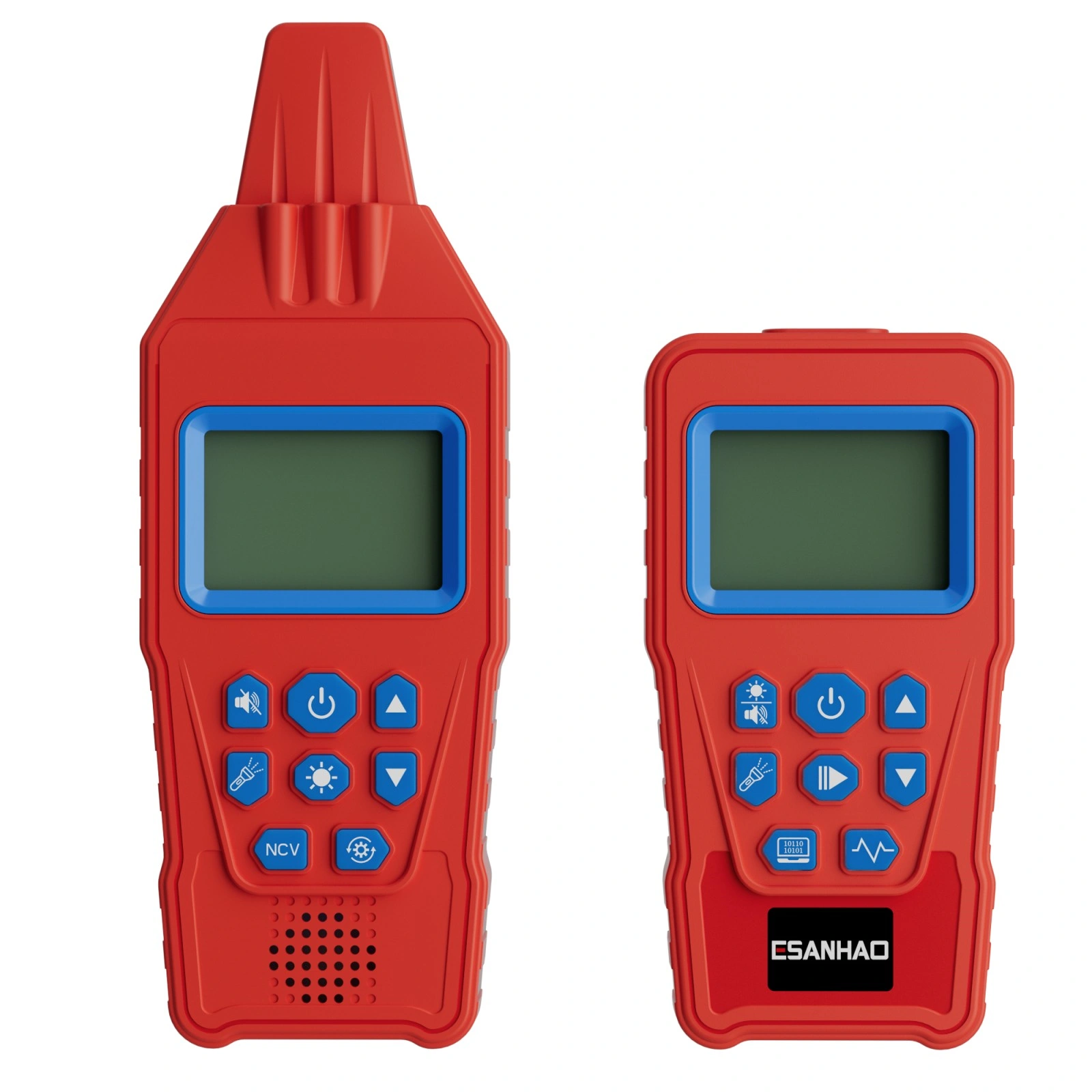

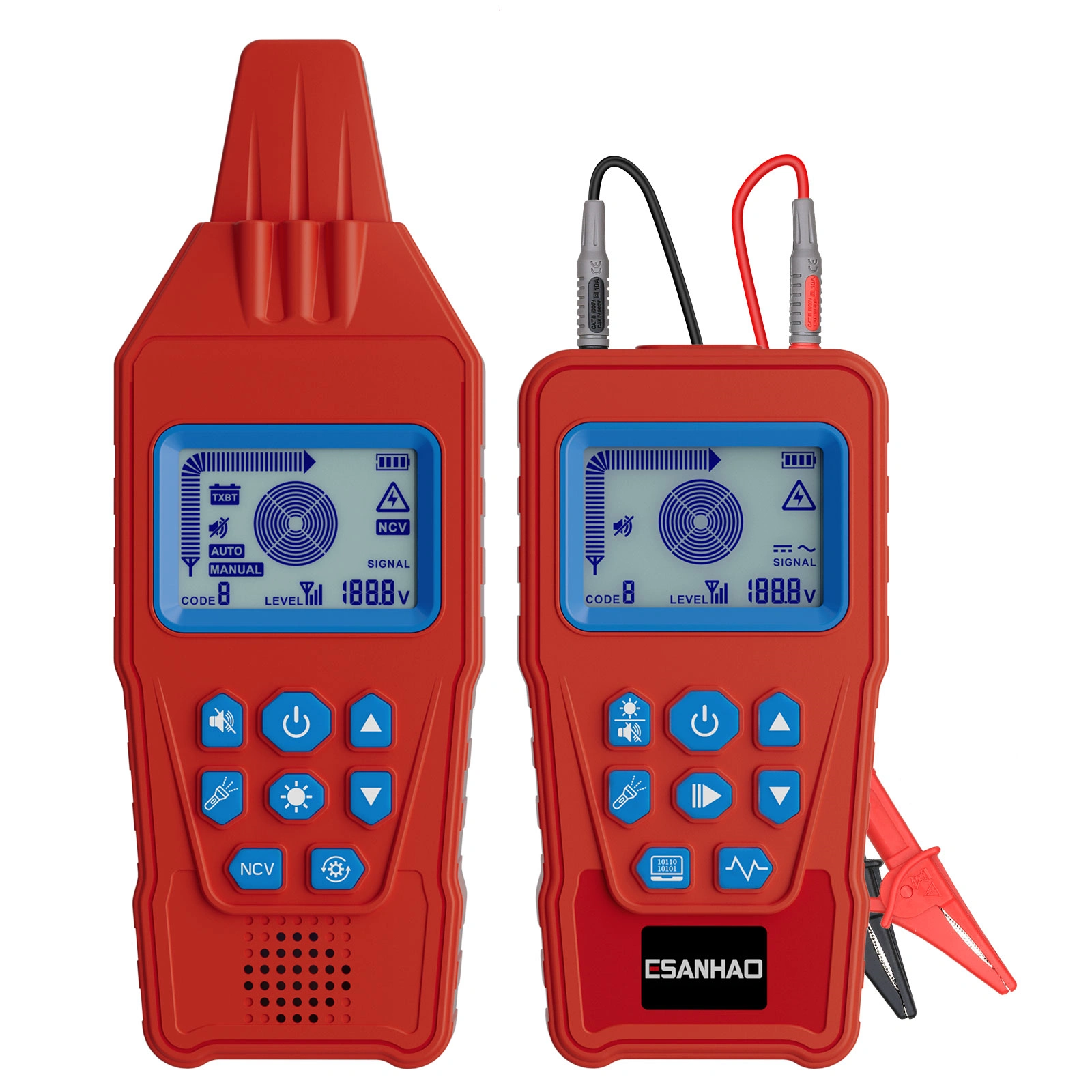

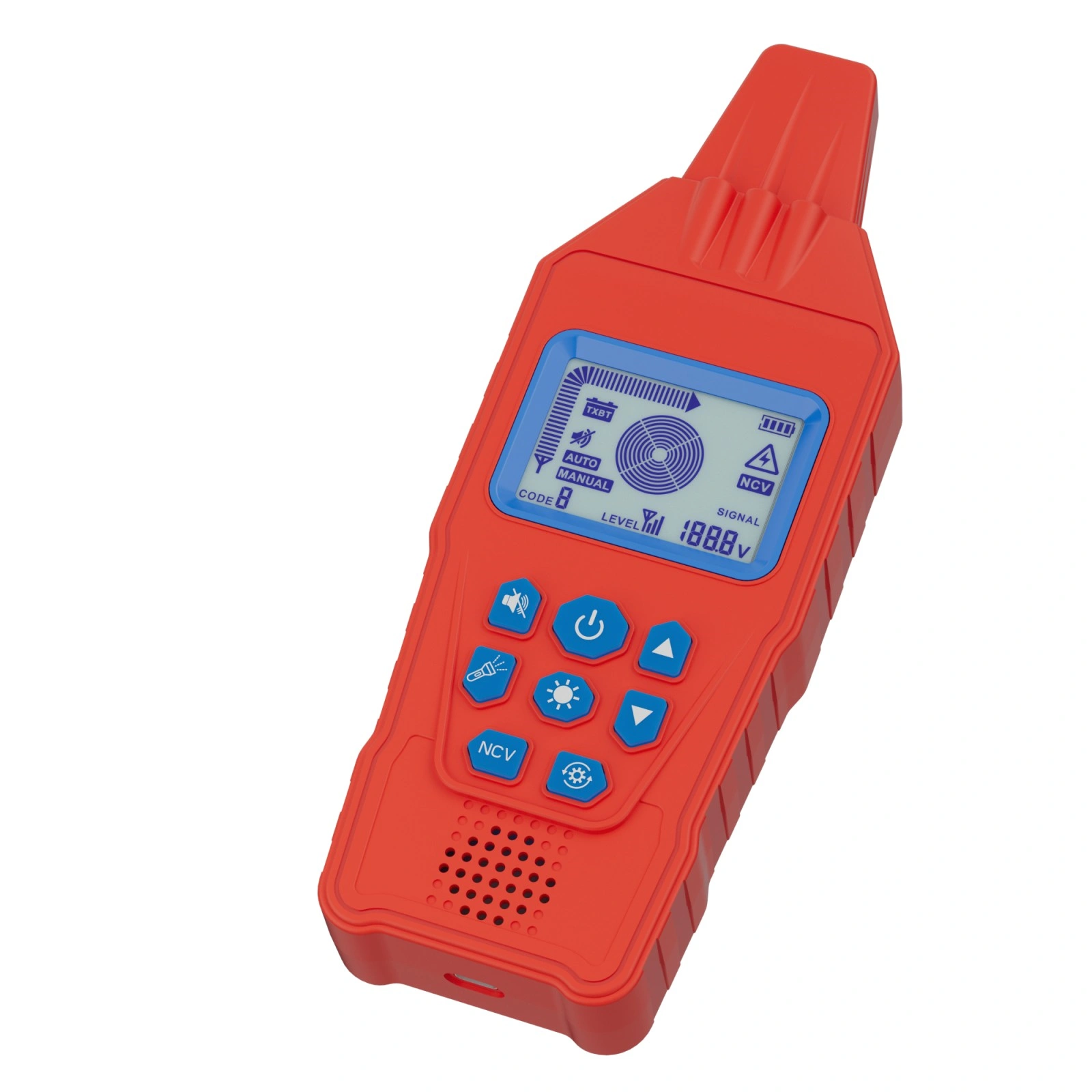

1. Underground & In-Wall Wire Locator is a portable instrument,which consists of transmitter, receiver and accessories. Selecting new integrated devices and digital circuit technology, the electrical performance is stable and reliable. According to the change of the signal, the specific location and fault of the buried cable or pipeline can be detected.
2. It Can Detecting cables, electrical lines, water/gas supply pipelines buried in wall or earth; interruptions and short circuit in cables and electrical lines buried in wall. Detecting fuses and assigning current circuits;Detecting interruptions and short-circuits in floor heating

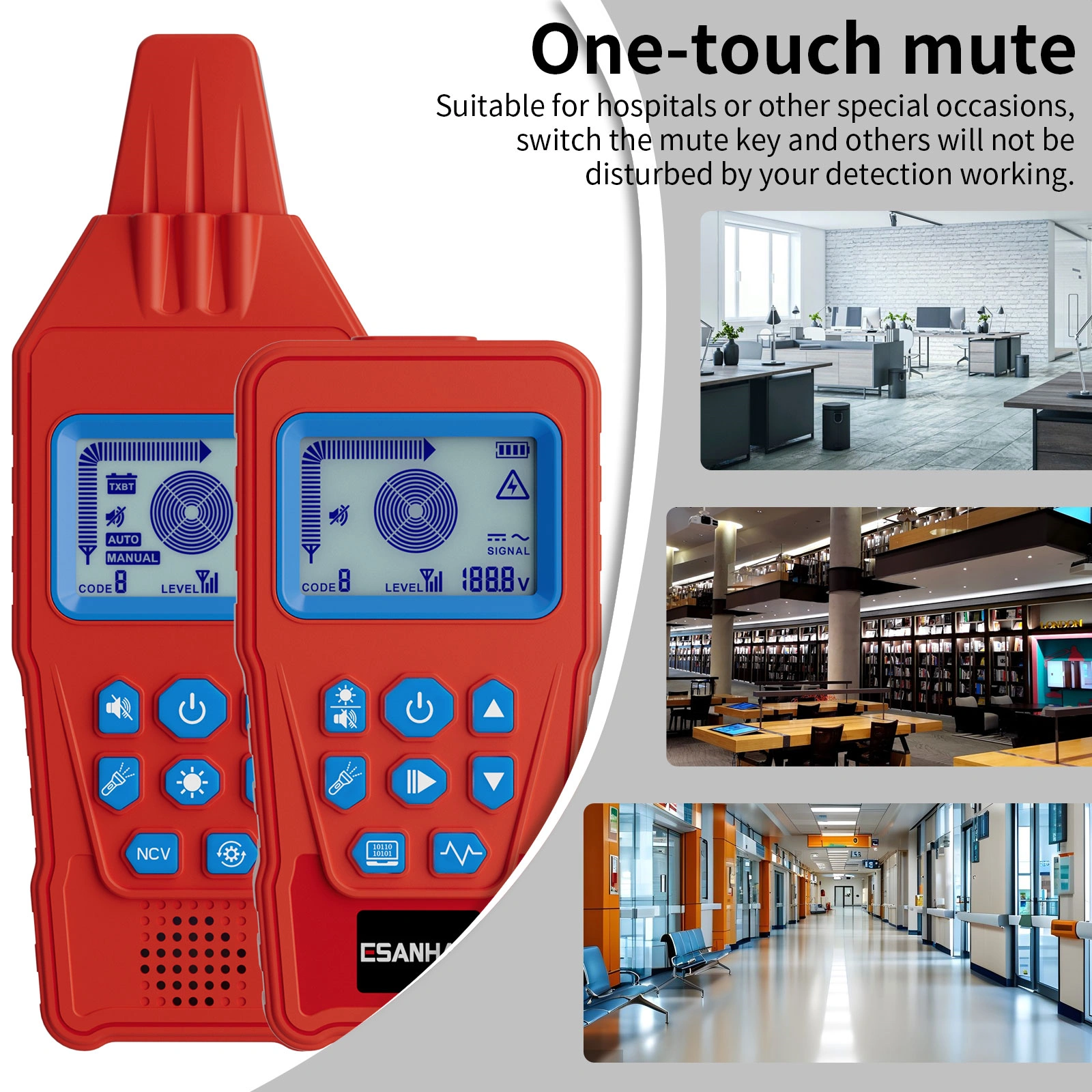

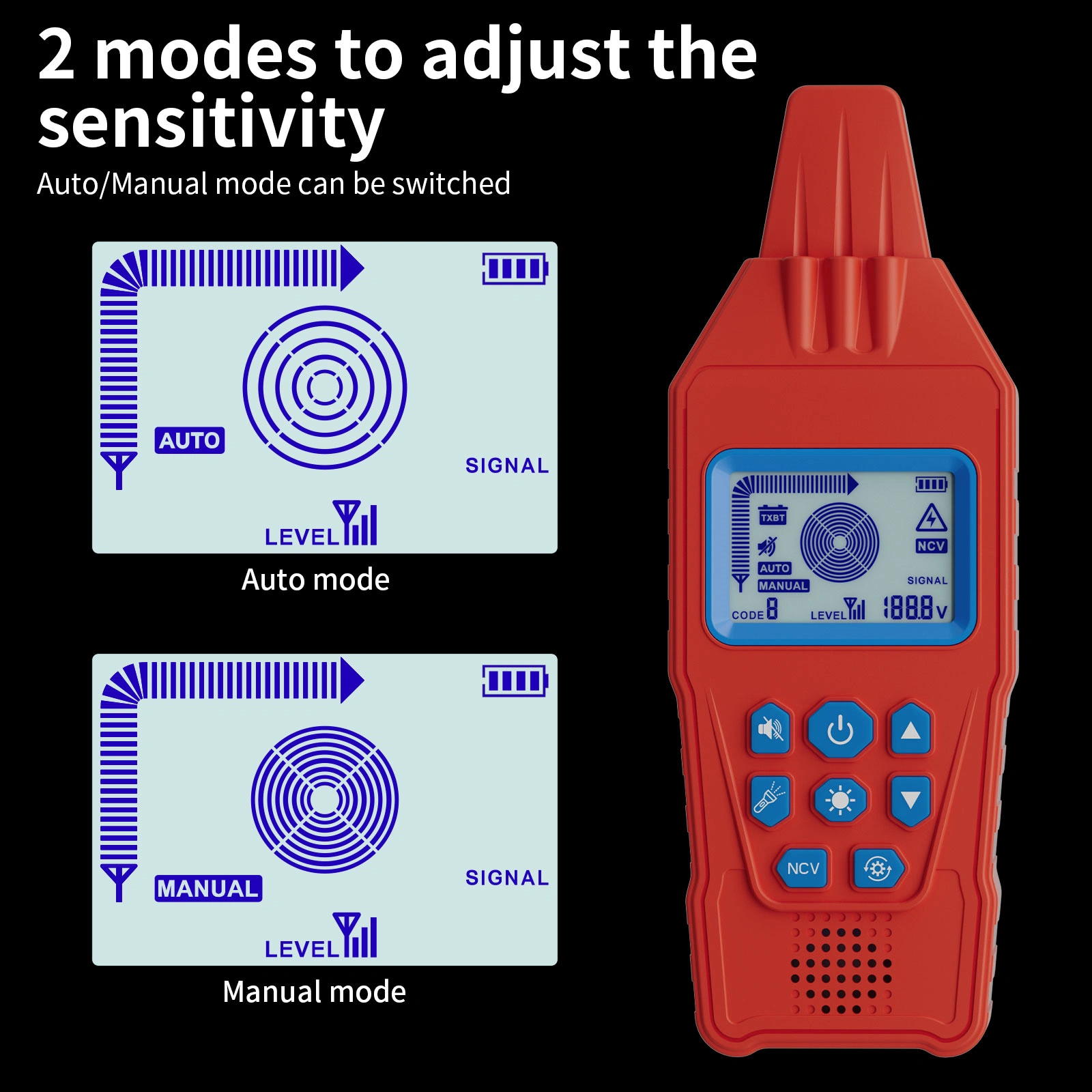

3. The sensitivity of the receiver can be adjusted either manually or automatically. can sweep frequency automatically. Both the transmitter and the receiver can work under mute mode. Additional transmitters are available to extende or distinguish multiple signals. it can automatically turn off the power after 15 minutes,If you forget to turn off the power when you are not using it. Compactness-durability and portability.
4. The transmitter is integrated with the function of AC/DC voltmeter, which can measure : 12 to 400V AC/DC voltage on a linear basis: AC: 12 ~ 400V (50 to 60 Hz) ± 2.5%. DC: 12～400V ±2.5%
5. Applications: Installation and maintenance of weak current system, communication line, comprehensive wiring circuit, telephone system, computer network, other metal wire circuit etc.
Applications:
Detecting cables,electrical lines,water/gas supply pipelines buried in wall or earth

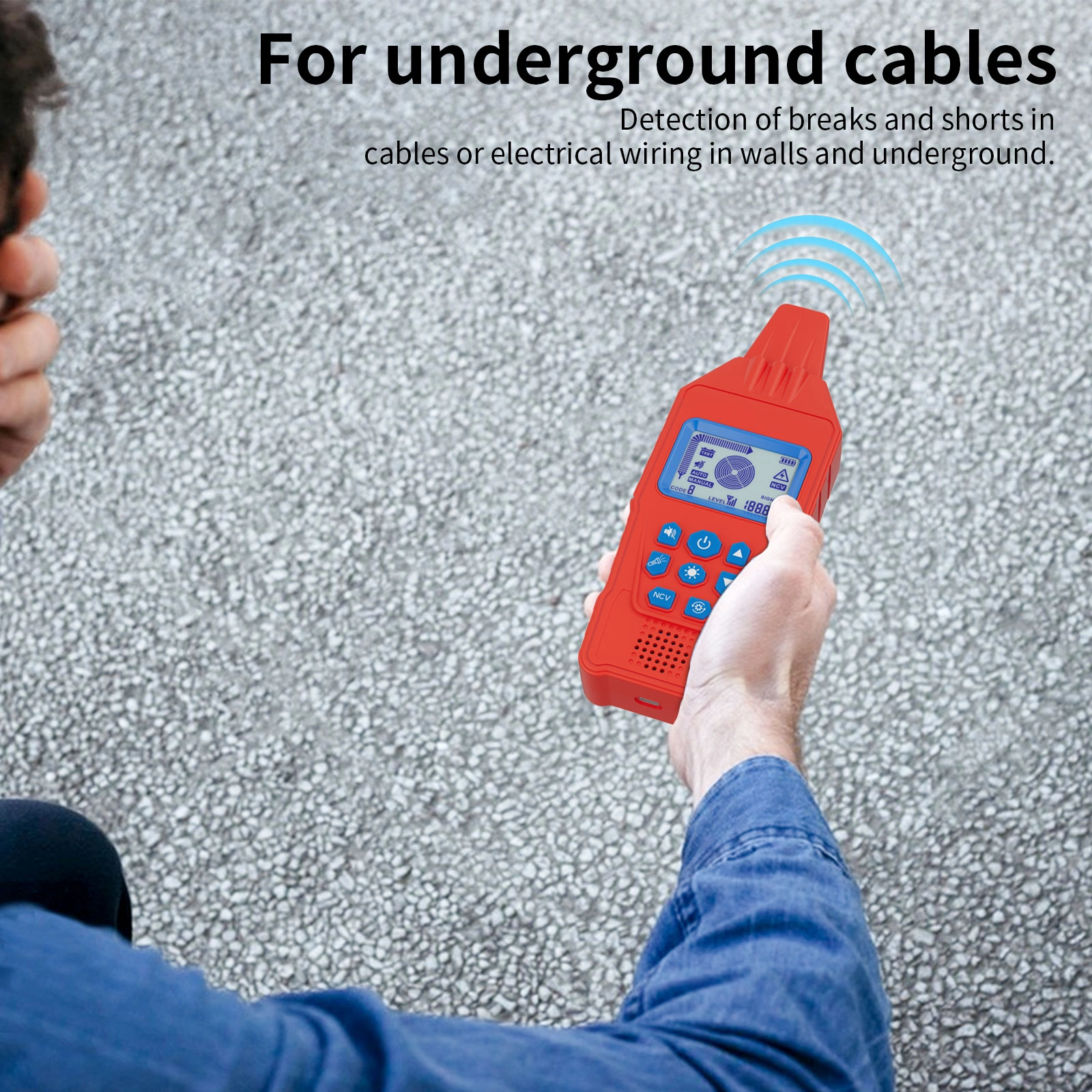

Detecting interruptions and short circuit in cables and electrical lines buried in wall or earth

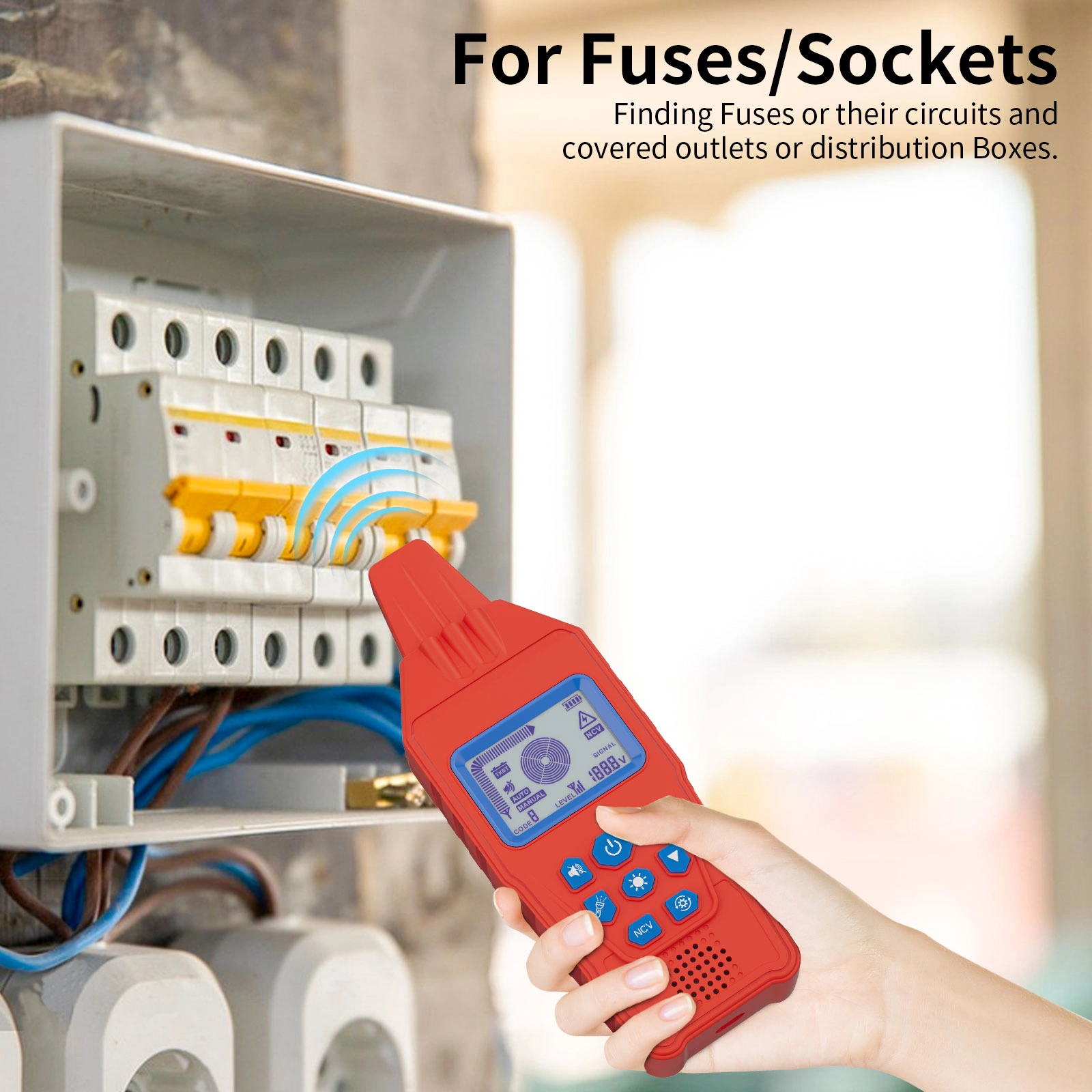

Detecting fuses and assigning current circuits
Detecting interruptions and short-circults in floor heating
Detecting sockets and distribution sockets having accidentally been covered by plastering

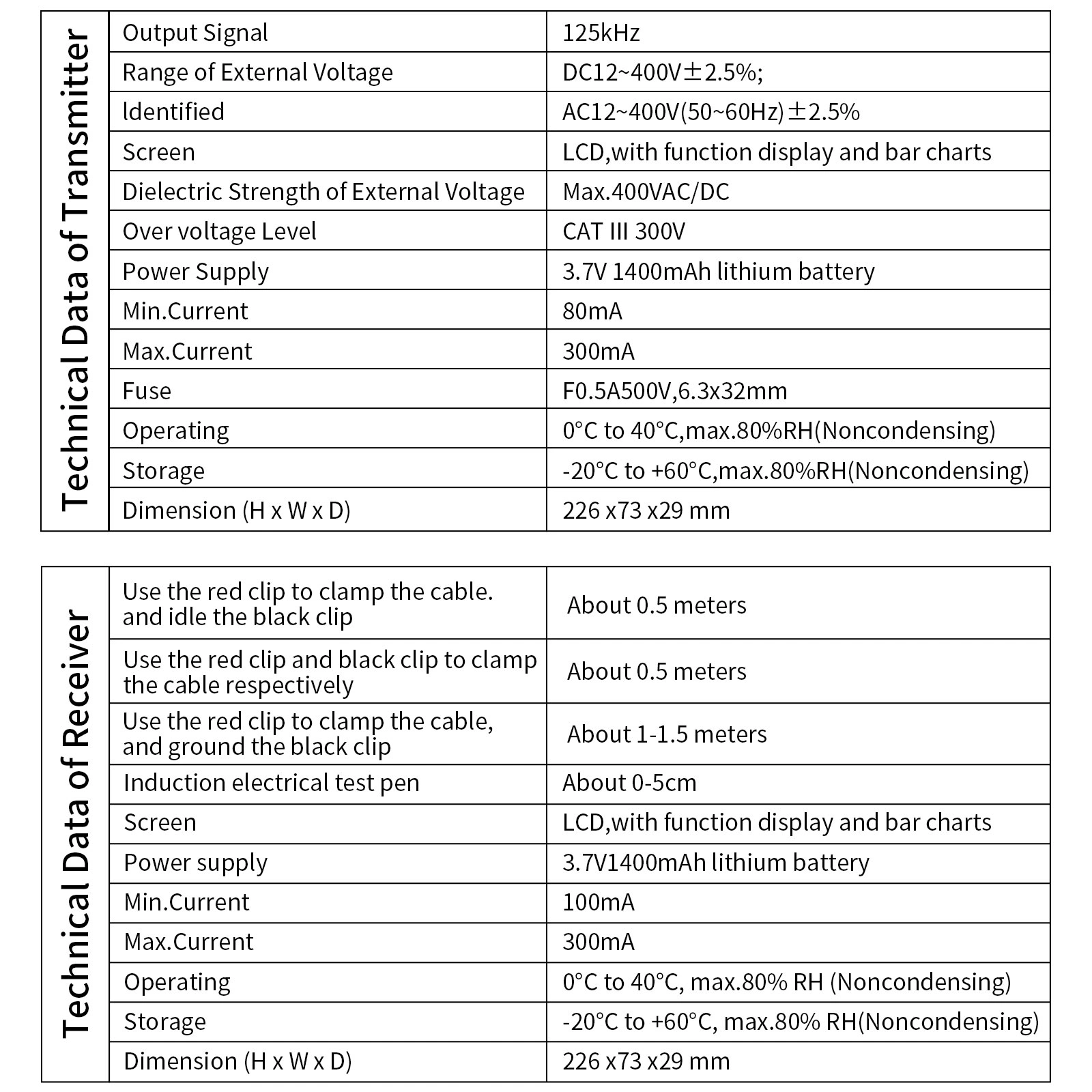

Technical parameters of transmitter
Output signal ：1MHz
External voltage：DC 12~400V ±2.5%;
identification range：AC 12~400V(50~60Hz) ±2.5%

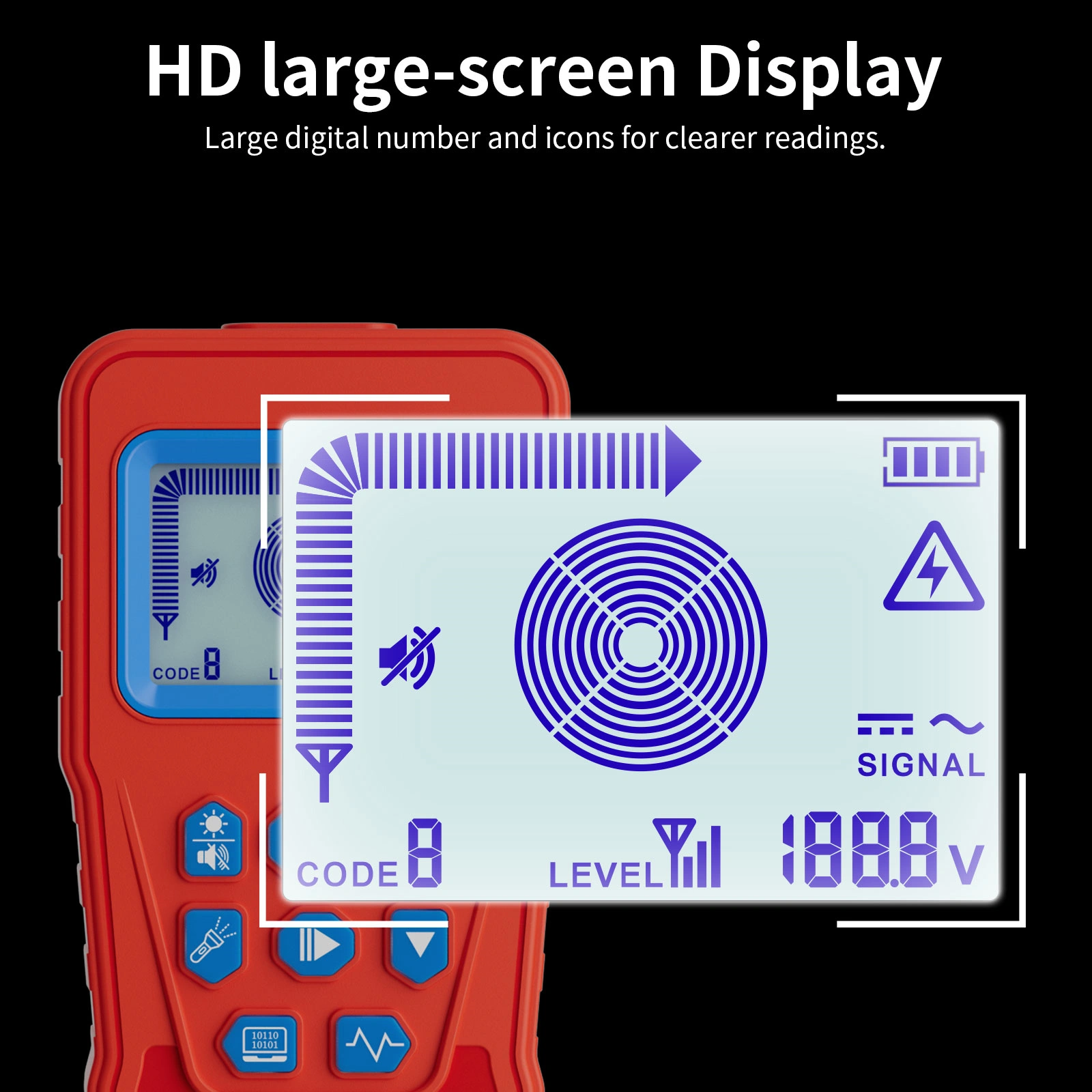

Display LCD：with function display and column chart
External voltage：Max. 400V AC/DC
dielectric strength：CAT III 300V
Overvoltage type：2
Power supply：3.7V 1400 mAh Lithium battary

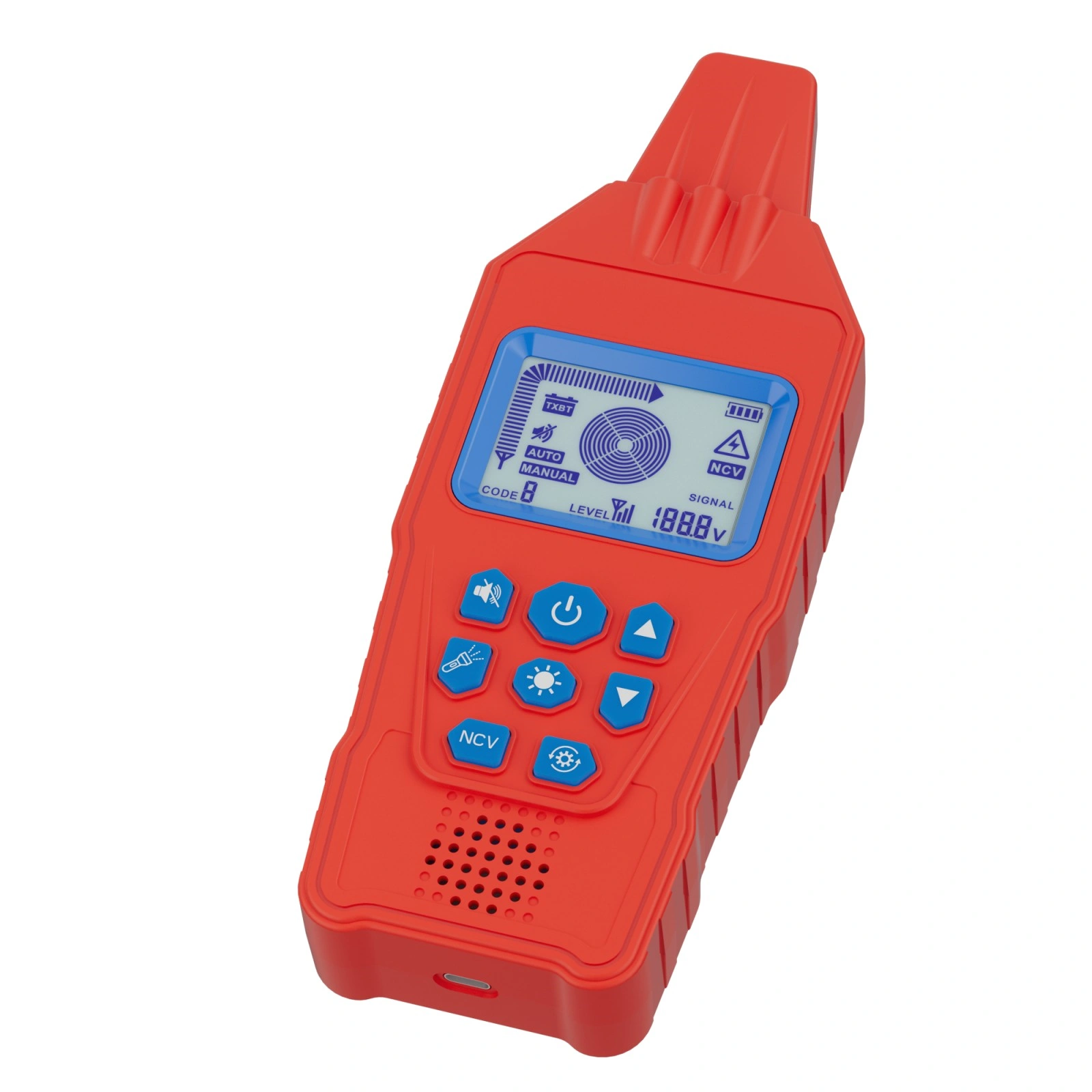

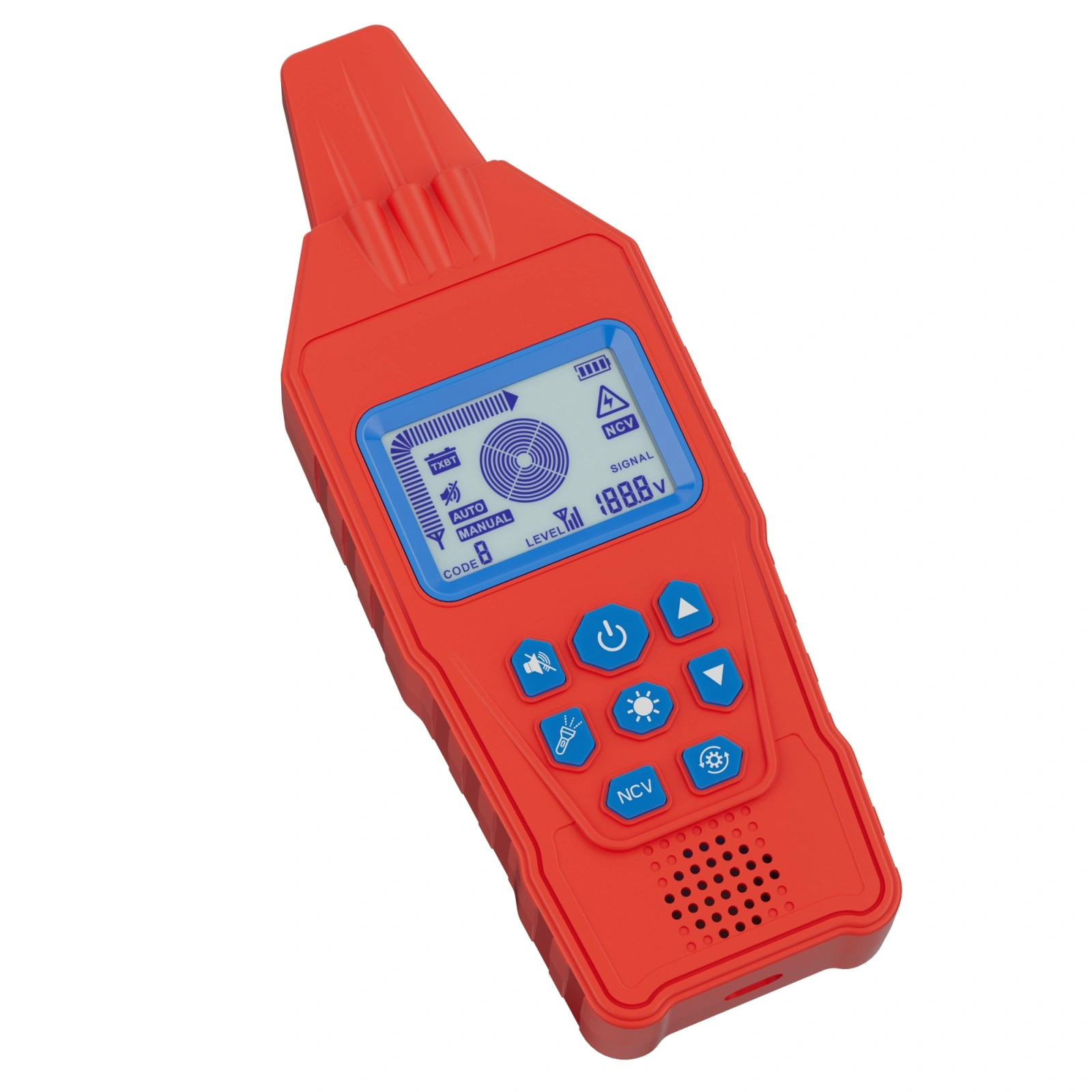

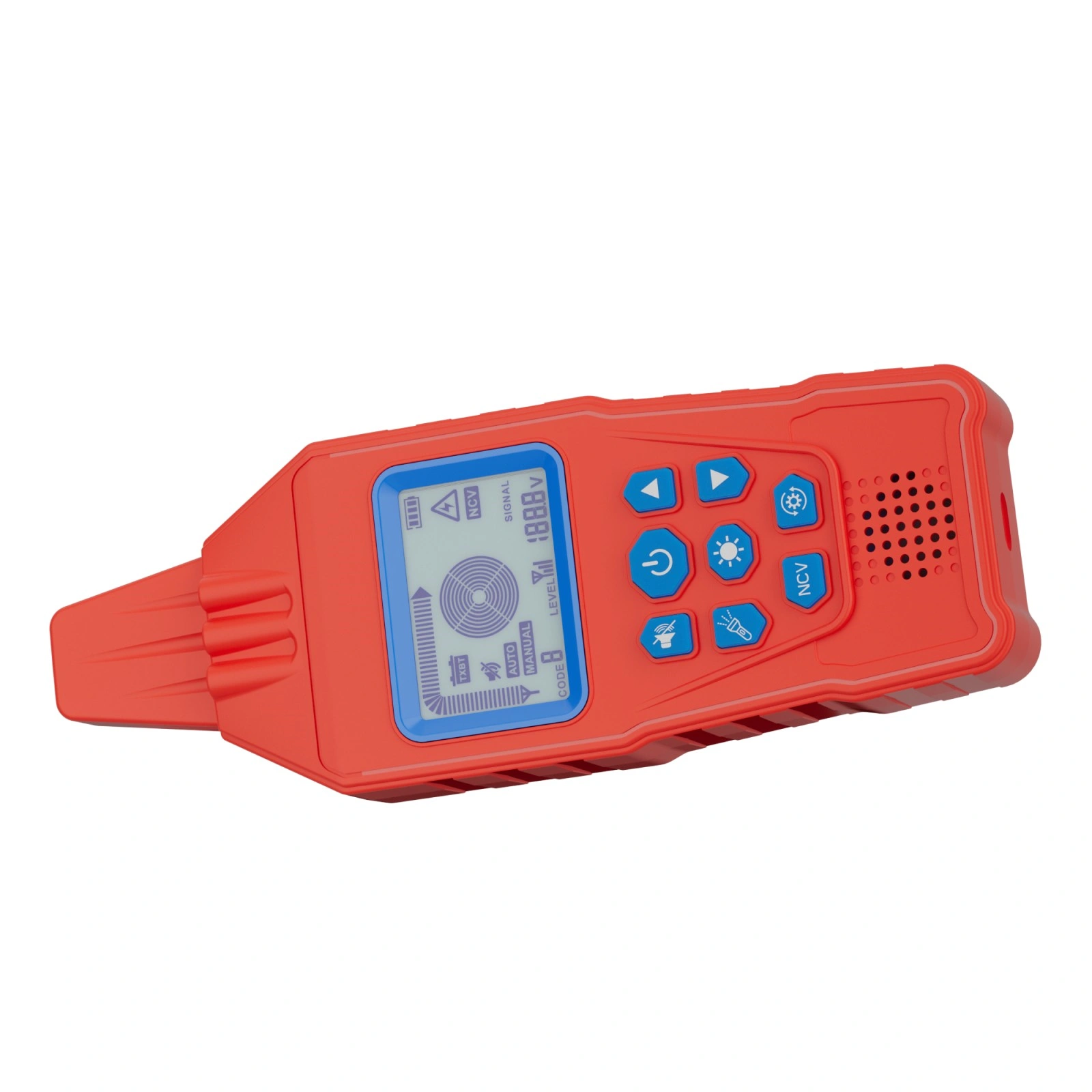

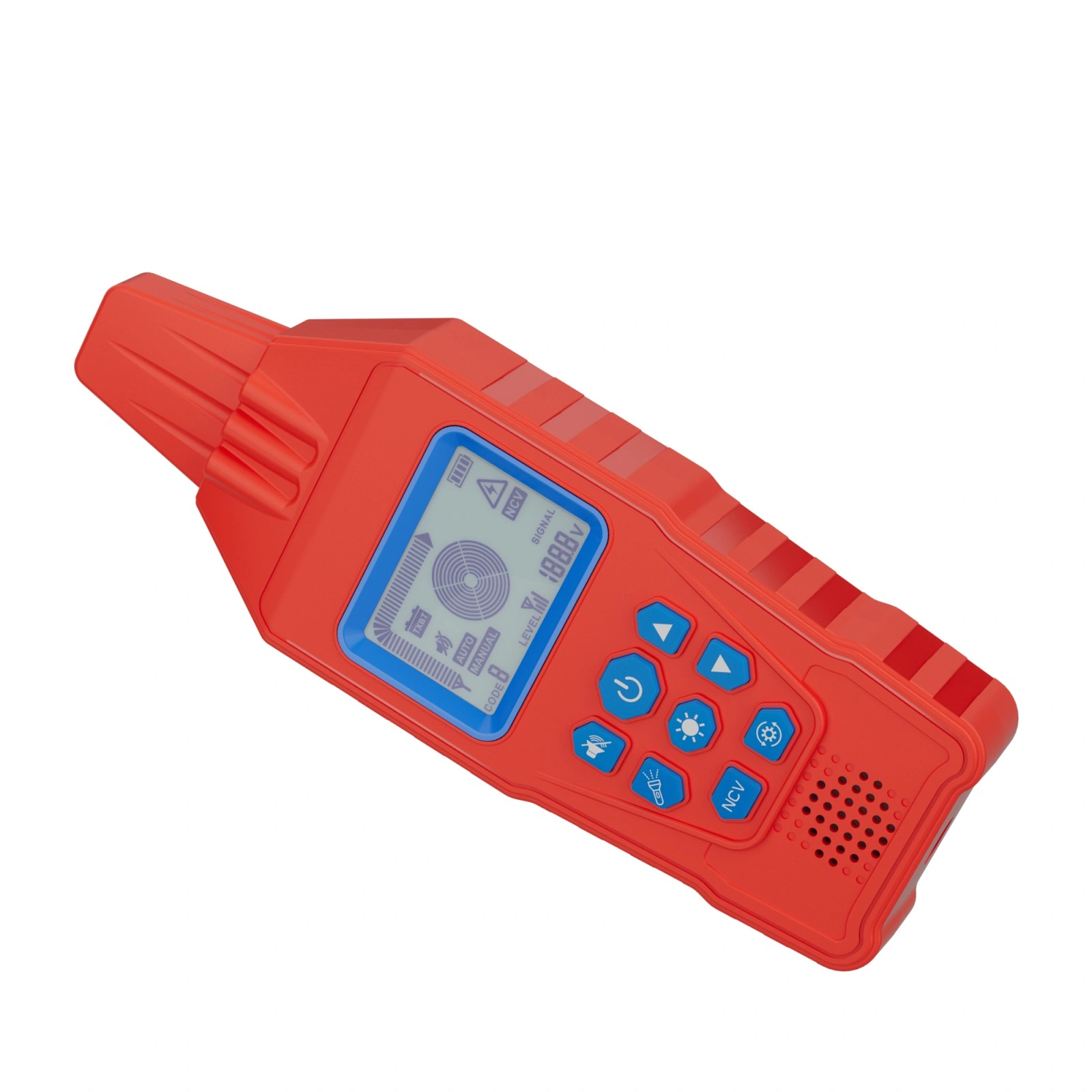

Technical parameters of receiver
Depth of tracking：The depth of tracking depends on the material and specific applications
Single pole application：About 0~1m
Dual-pole application：About 0-0.5m
Single loop line：Up to 2.5m
Grid voltage identification：About 0~0.4m
Display LCD：with function display and column chart
Power supply：3.7V 1400 mAh Lithium battary

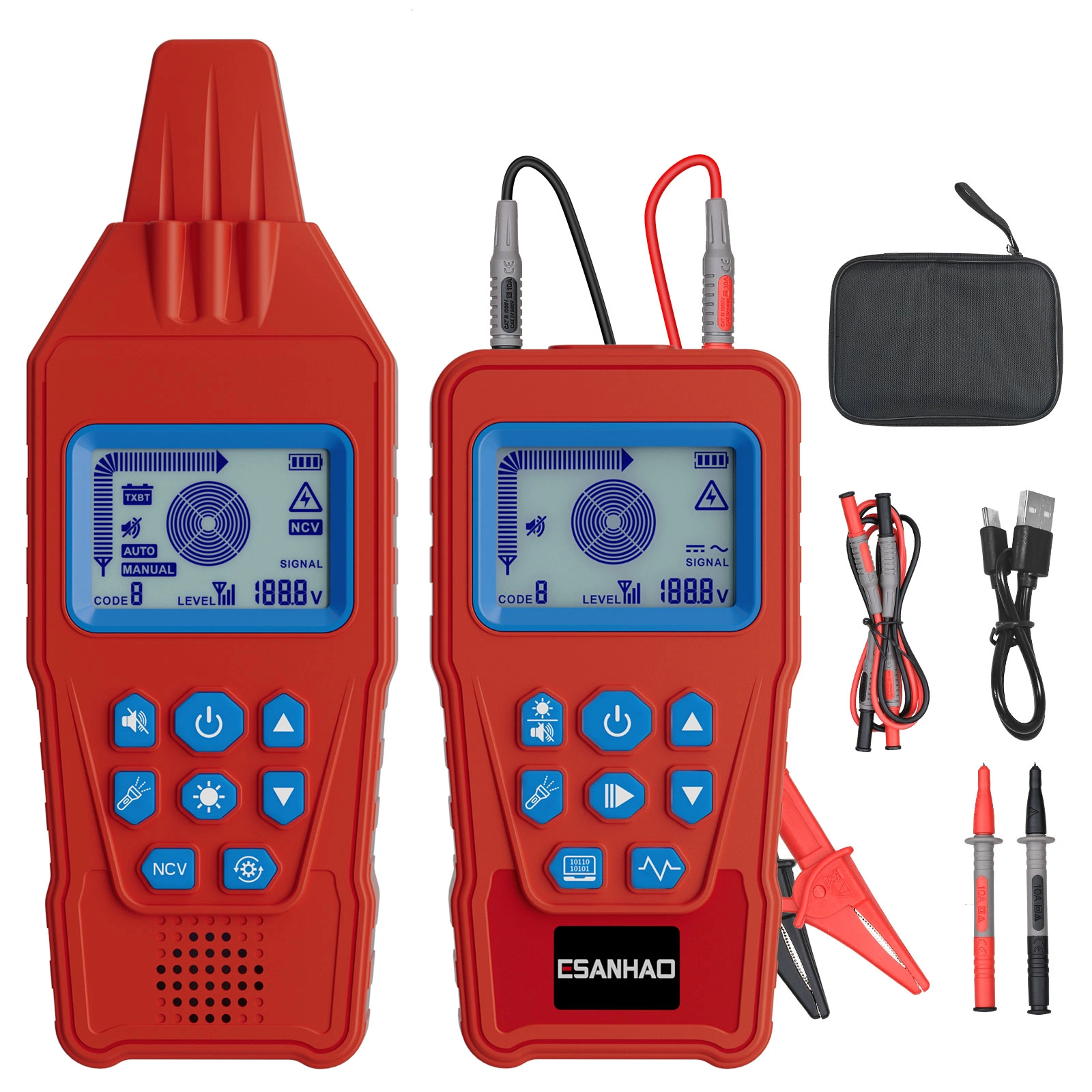

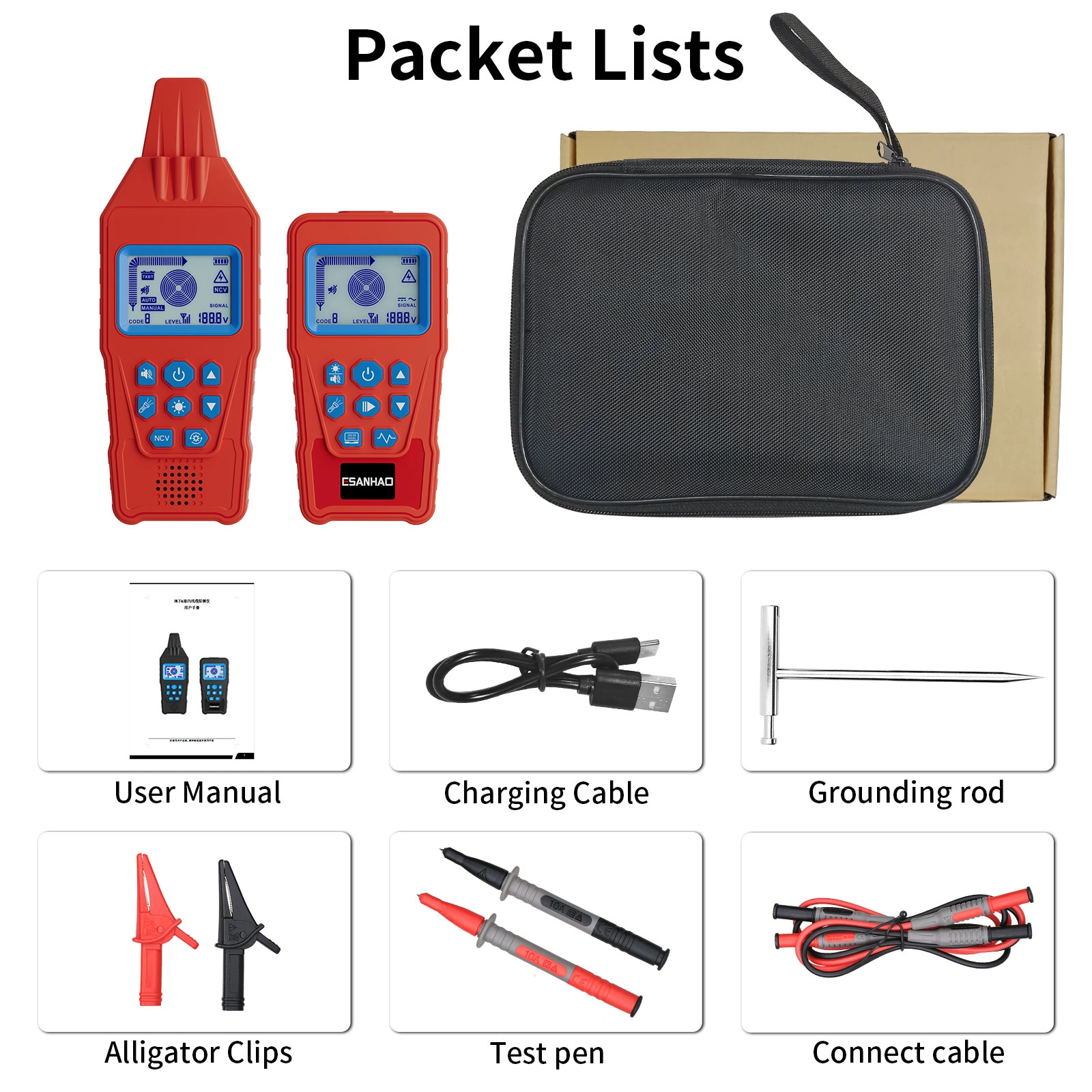

Package List:
Transmitter*1
Receiver* 1
Test Probe* 2
Test Wire *2
Alligator Clip *2
Ground Rod Wire *1
USB Charging Cable* 1
User Manual *1
Cloth Bag *1
