Product introduction
| Name | Weight (KG) | Length (cm) | Width (CM) | Height (cm) |
| F929ADFR8R-20M | 7.3 | 43 | 41 | 30 |
| F929ADFR8R-30M | 7.8 | 43 | 41 | 30 |
| F929ADFR8R-40M | 8.3 | 43 | 41 | 30 |
| F929ADFR8R-50M | 8.8 | 43 | 41 | 30 |
512HZ Pipe Locator And DVR 16GB TF Card Pipe Inspection Camera 9Inch 1080P Screen Sewer Pipeline Camera IP68 23MM Camera 12PCS LED
The pipe inspection camera combines a camera-tipped probe with9" IPS monitor for viewing hard-to-reach inspection area. The deluxe leather sun visor provides clear viewing in outdoor inspection and extra protection for the monitor. It comes with a fully padded case which stores all kits for easy transport and use. It eliminates the needs of tearing drywall to locate leaks and helps to solve pipe problems. It is a must have for any homeowner, contractor and even professional plumbers!

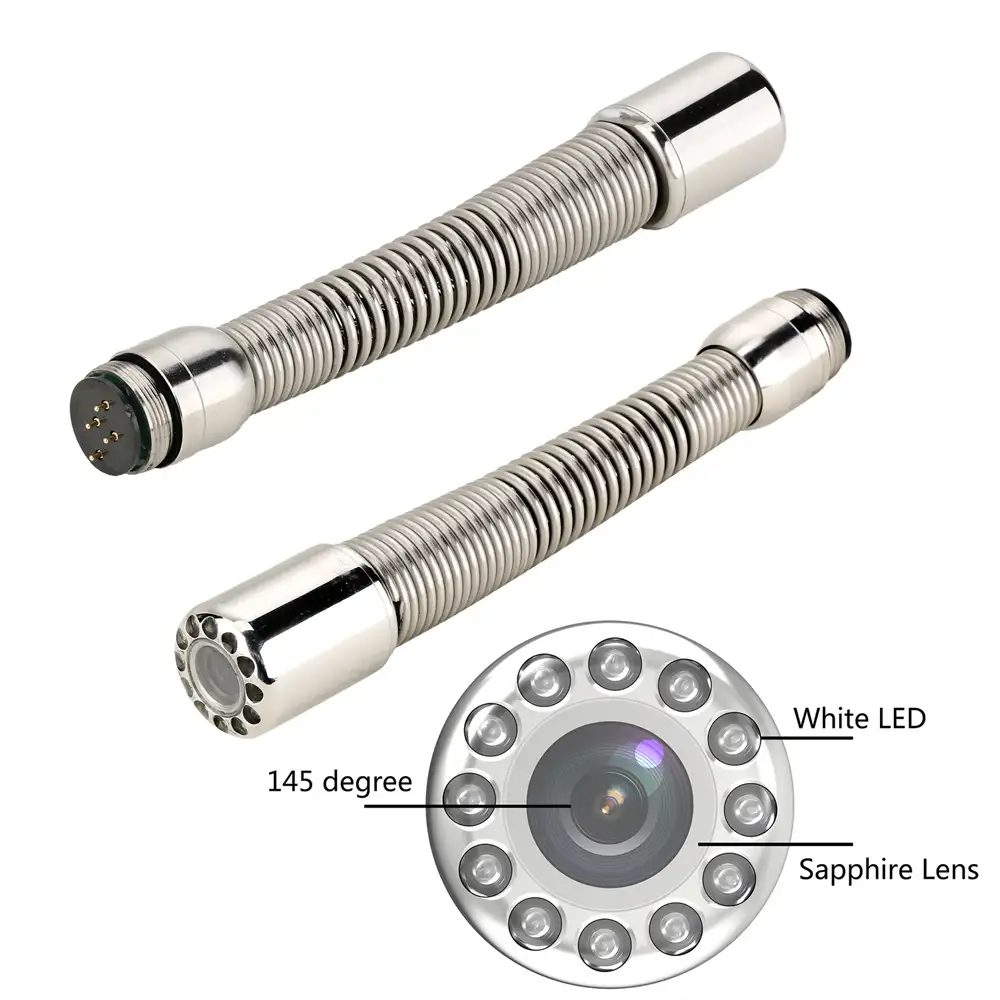

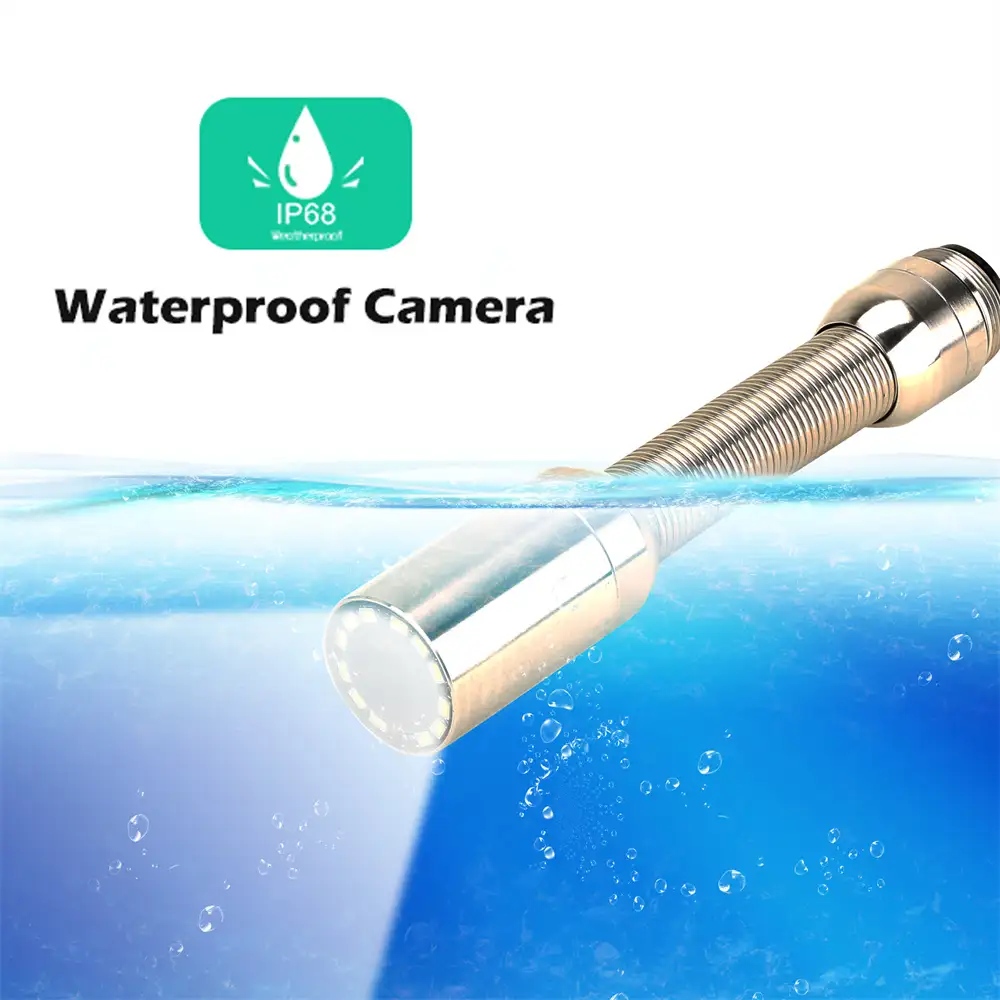

The Drain Sewer Pipeline Industrial Endoscope System with AHD1080P high-definition waterproof IP68 #304 stainless steel camera+tipped probe+145°wide viewing angle what make it clear when you inspect some places hard to watch.12 pcs adjustable LEDs to illuminate the hard-to-reach inspection area.Inspections will be seen more clearly in the dark environment.

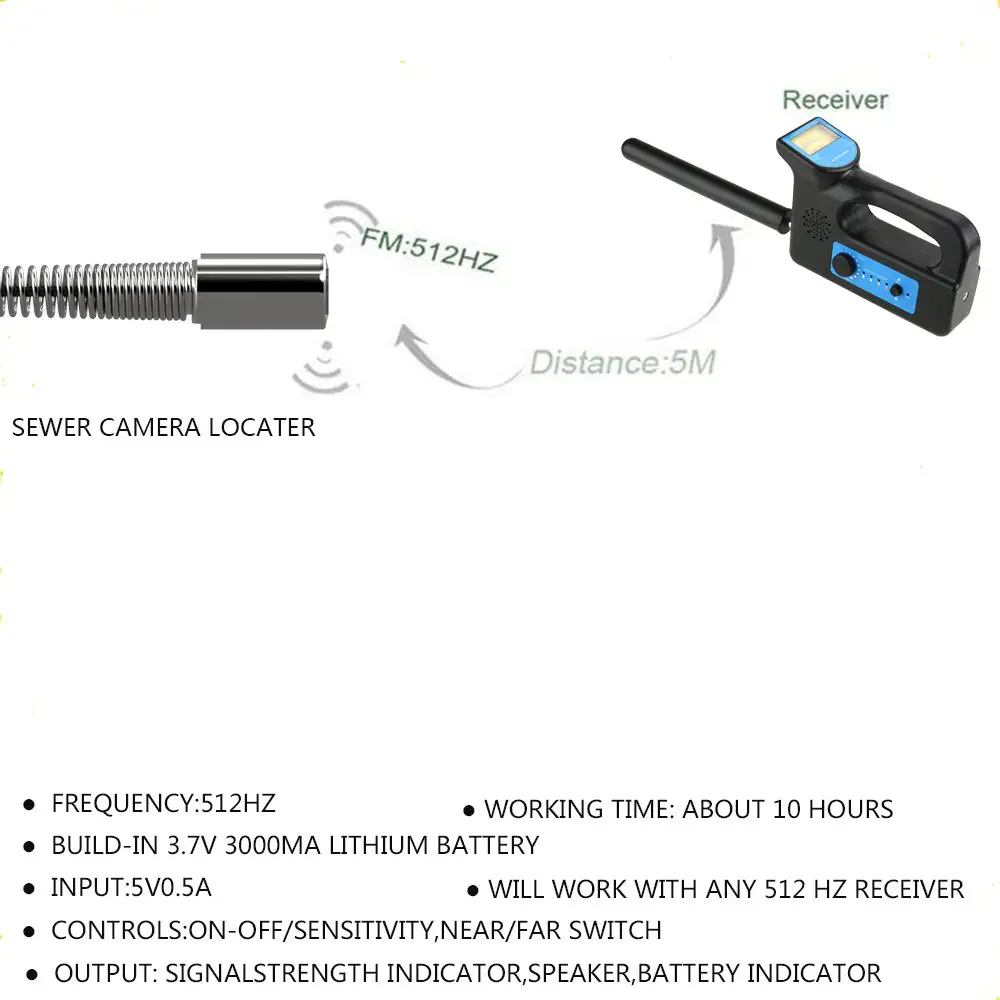

512HZ TRANSMITTER:

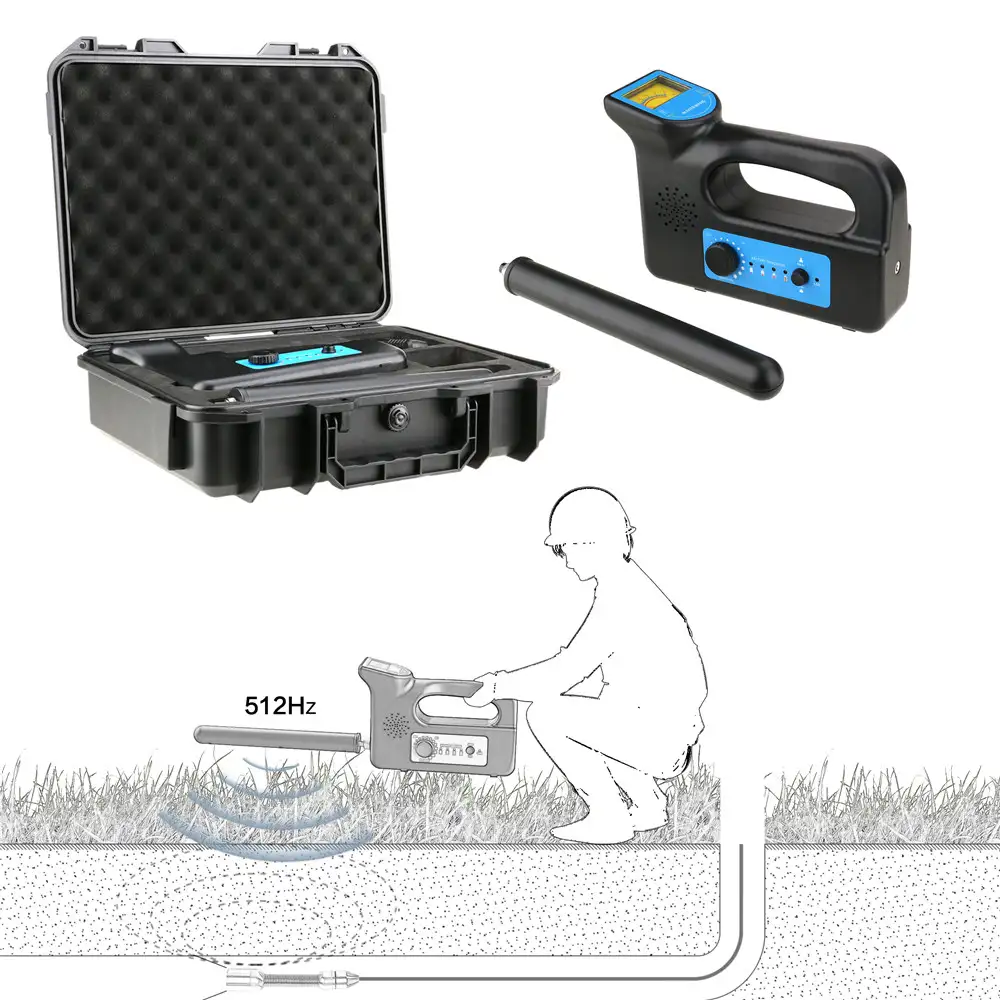

This transmitter is suitable for locating the damage place of underground pipes, air-conditioning pipes and other pipes, Video Auto balance Auto Self Leveling 512HZ Transmitter Pipe Locator.

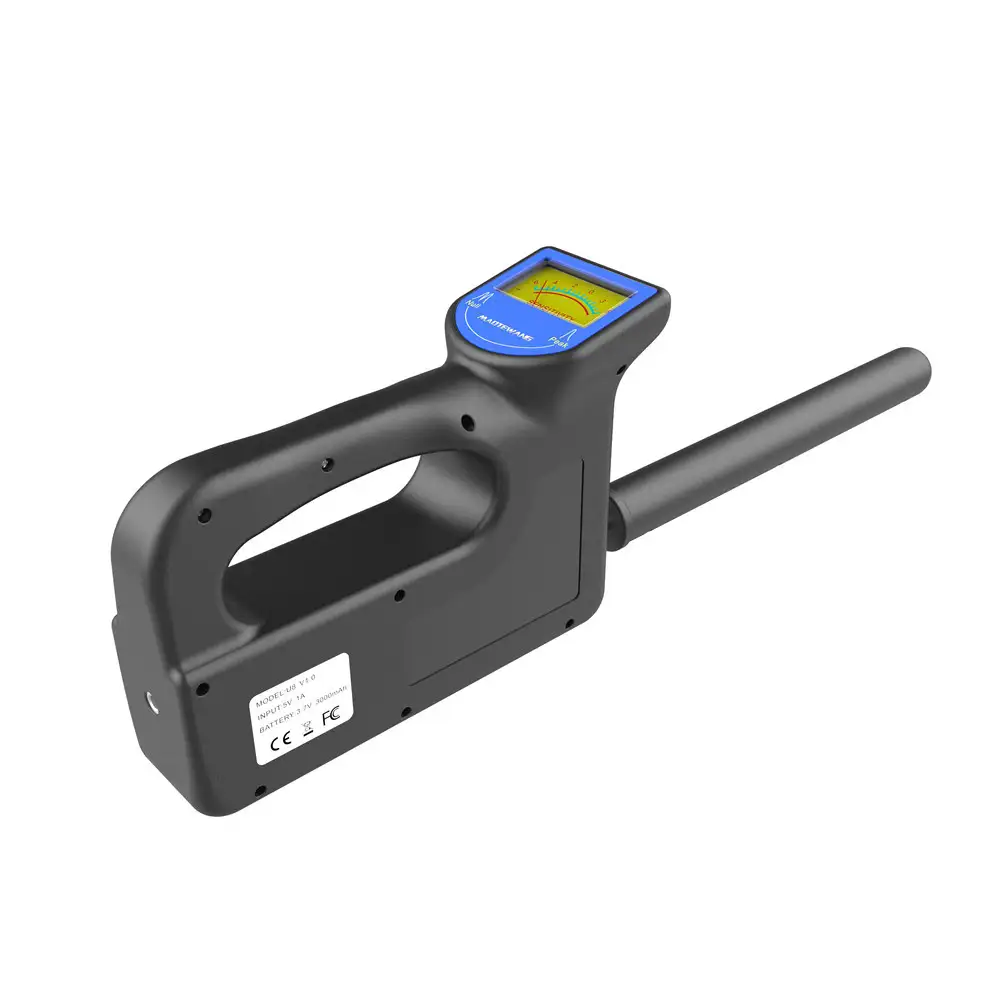

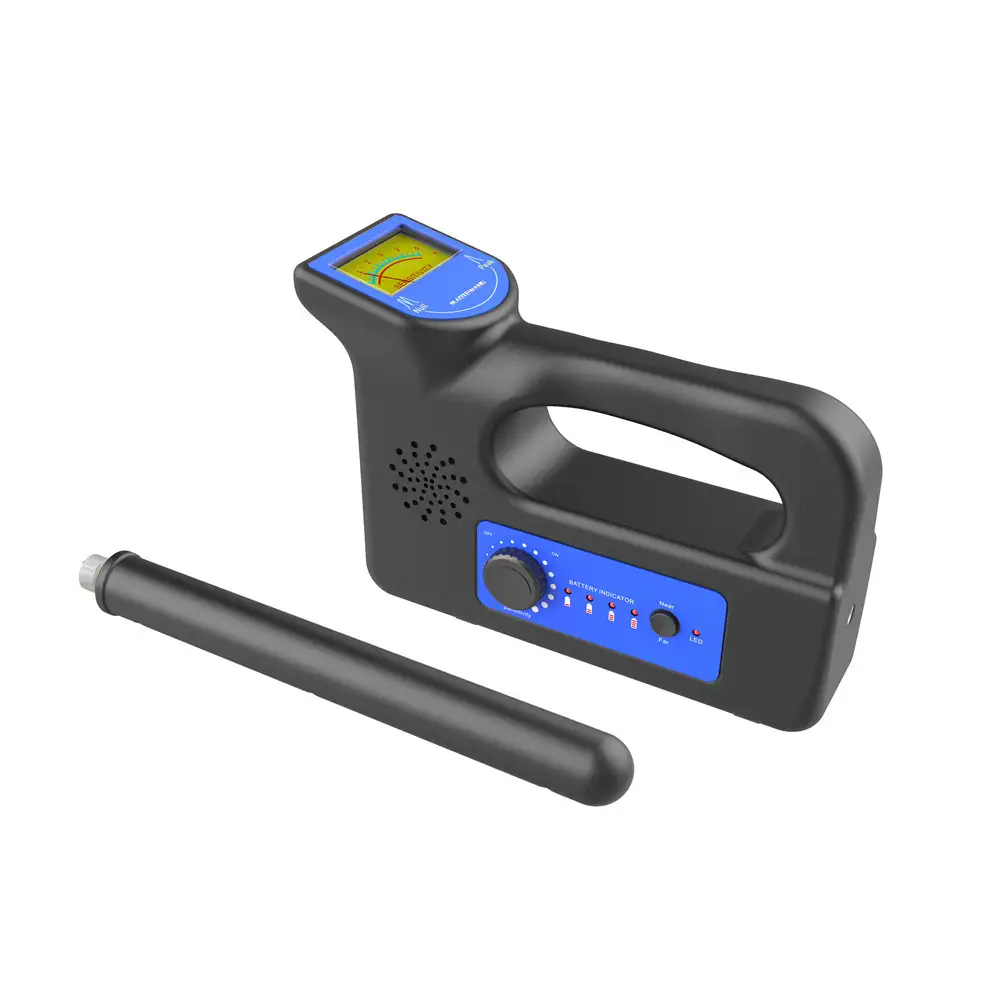

512HZ Receiver Technical Parameters：
Receiver Frequency: 512HZ
Distance: about 5m
Battery: 3.7V 3000MAH built-in lithium battery
Charger: 5V1A
Battery Indicator：4 gear,it is flashing when battery is low
Battery working time：about 10 hours
Signal strength：6 gear
Speaker：Support
Detect Mode : Far/ Near

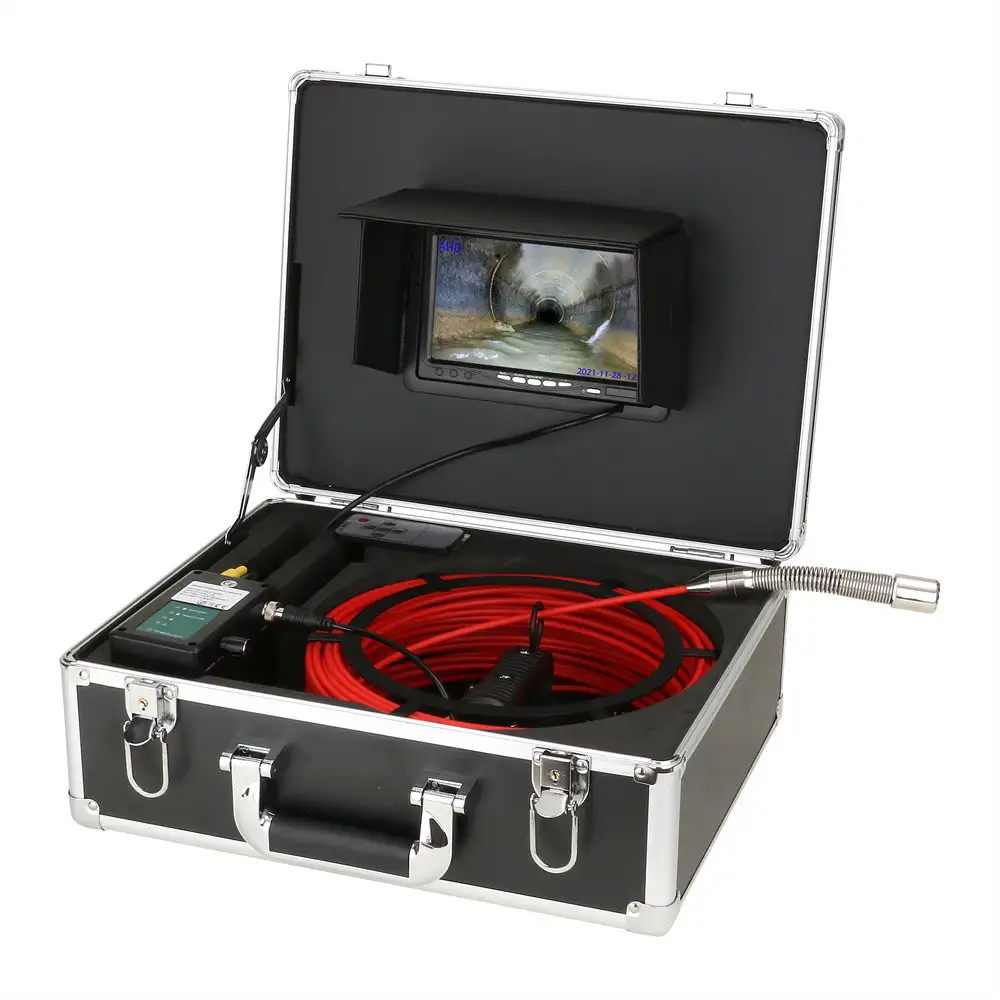

MONITOR&CABLE：
Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 9 inches color IPS LCD monitor with a sun-visor for outdoor inspections.The material of wire is fiberglass rod(diameter: 4.9MM),anti-corrosion/cold/tensile.

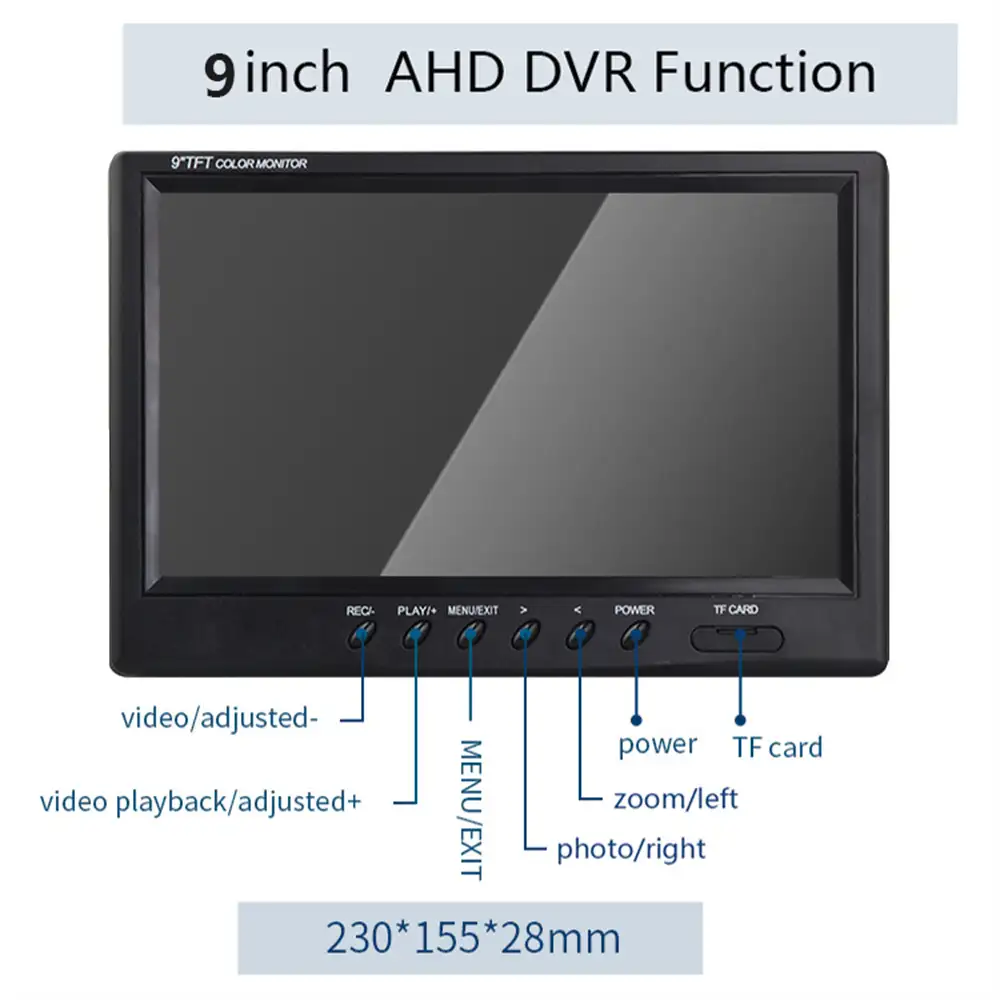

DVR Recording Function：
Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is avialiable to view live video and save video clips and photos.You can record the inspections and playback via the pipe system.（DVR Edition Video Format :MP4 Photo format :JPG)

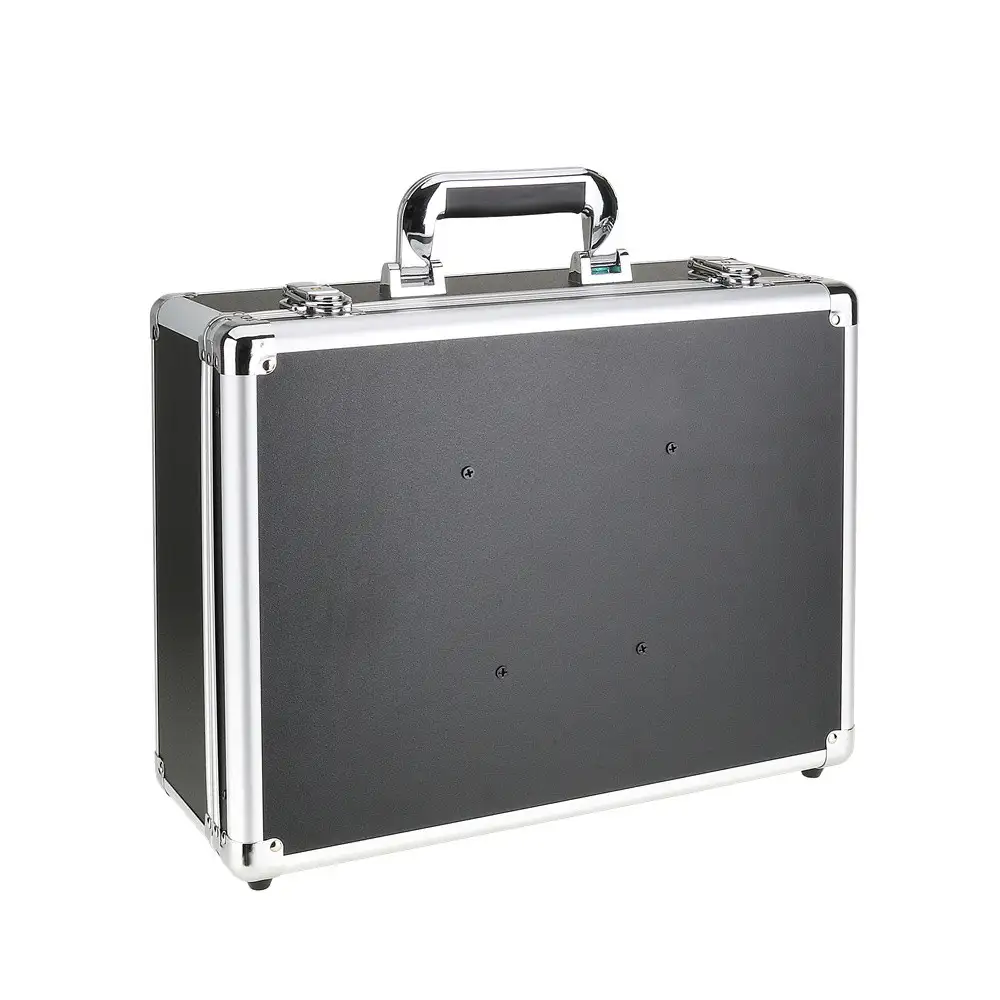

PORTABLE CARRY CASE&LONG BATTERY：

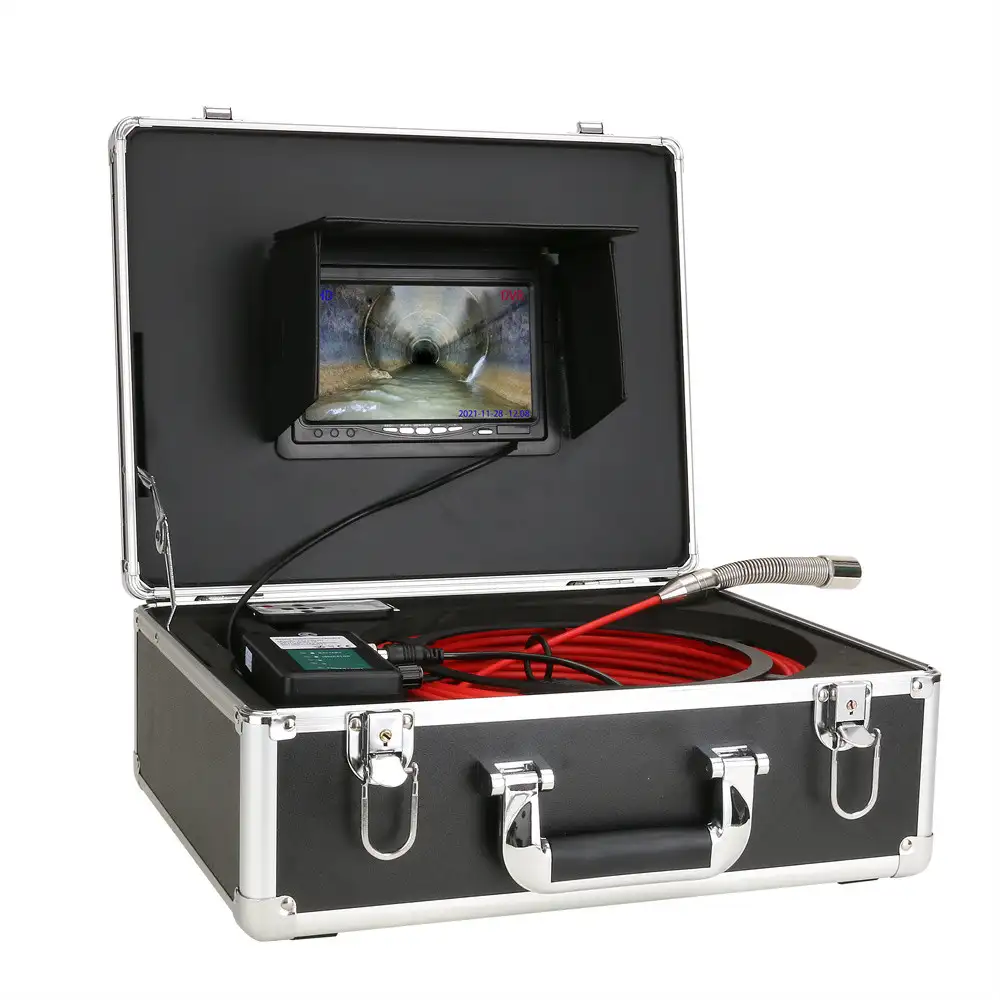

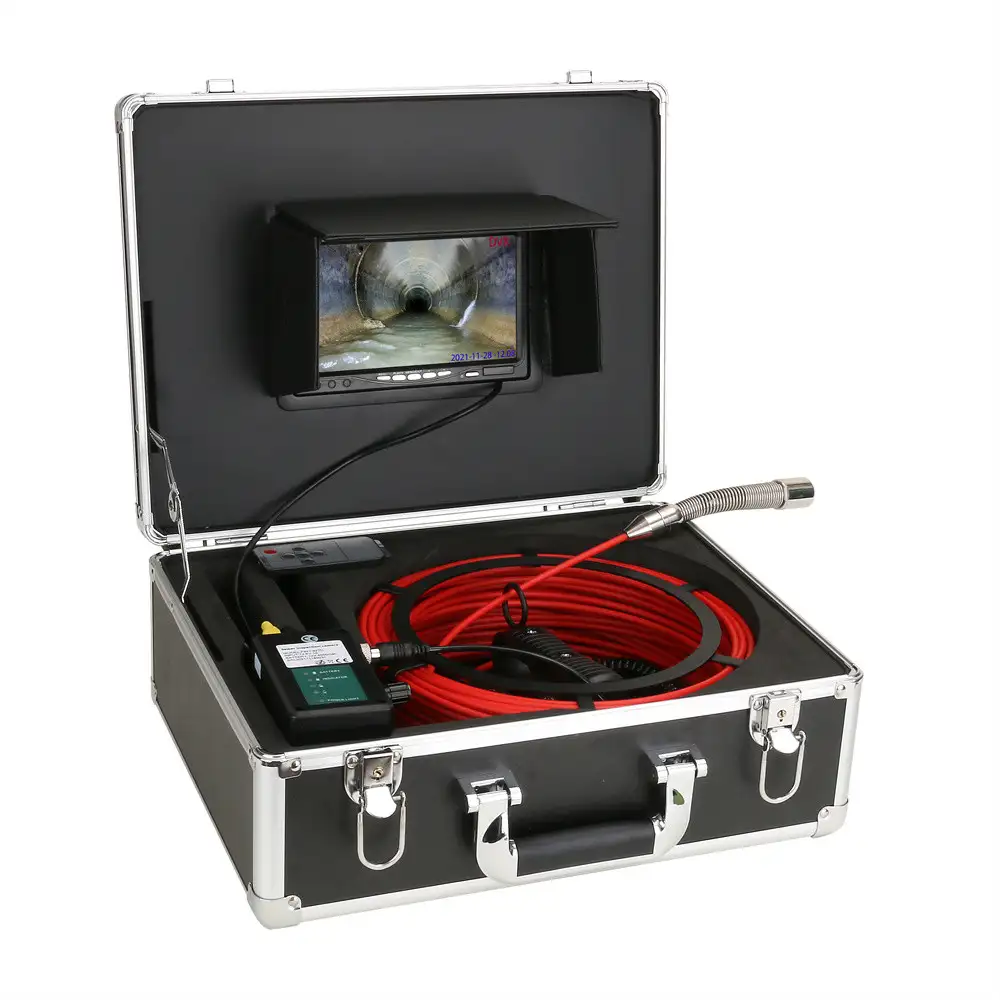

Pipe Wall Sewer Inspection Snake Camera Kit with heavy duty padded aluminum case stores all contents, convenient to carry around. 12V 4500mAh Li-battery included supports approximate 8 hours of continuous use.
Applications:
Blocked / slow draining plumbing.
Wall / wire inspection.
Home owners inspection.
Item: parameter
1.Monitor:9 inch IPS color record monitor with sun-visor for bright environment outside
2.SD Card: Memory Support maximum 64G TF card(16G TF card included)
3.512hz:Built in 512hz transmitter
4.Receiver Frequency: 512HZ
5. Quick photo: press the <key to take a photo.
6. Image Zoom : Press > key to zoom the image from 0 to 5 times.
7. Charger: AC100-240V DC12.6V
8.Battery: Luminal-cell arrester 4.5AH
9.continuous use time for battery: approximate 8h
10.investigation depth: 20M( selectable line length)
11.material: fiber tube with /high intensity
12.camera light source: 12 PCS LED with high while light(adjustable)
13.camera viewing angle: 145°
14.Lens Mirror Material : Sapphire

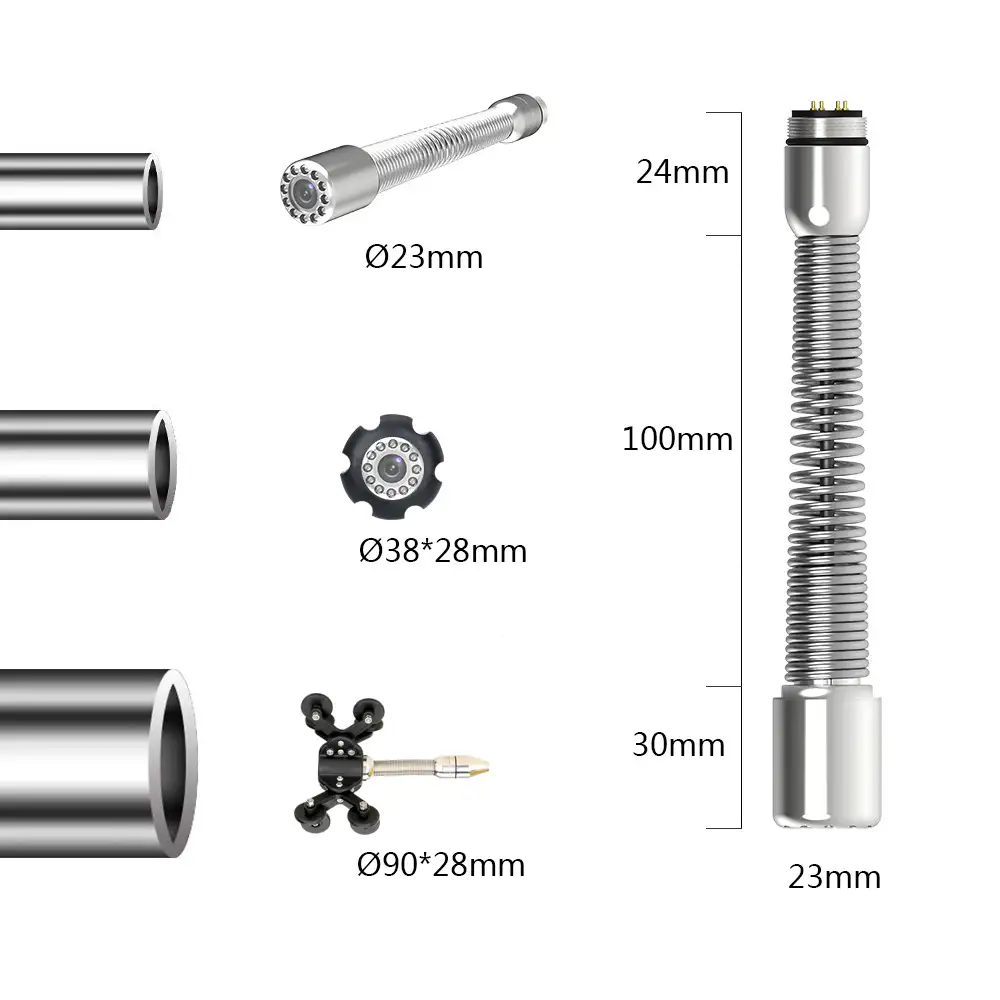

15.camera size/material: 23MM* 30MM /stainless steel
16.camera protective cover parts size/material:38MM* 28MM /plastic-steel
17.camera protective cover parts size/material:90MM* 28MM /plastic-steel with wheel
18.camera picture: color
19.Aluminum box size: 410*335*190mm
Package List:
1 * 9inch IPS Monitor（DVR)
1 * Camera (AHD 1080P)
1 * 512Hz PIPE Locator
1 * 16GB TF Card
1 * 20M Fiberglass Cable
2 * Camera Proof Cover
1 * 4500mah Battery Box
2 * Charger
1 * Connection Cable
1 * Screw Driver
1 * User Manual (English)
